Air Conditioner Unit Trips Breaker: Comprehensive Troubleshooting
Experiencing a breaker trip when your air conditioner runs? This urgent troubleshooting guide covers safe checks, likely causes, step-by-step fixes, and when to call a pro to protect your home and restore cooling quickly.
Most likely, your air conditioner unit trips breaker due to an overloaded circuit, a failing capacitor, or a short in the start relay. Start with basic power-downs and simple visual checks: reset the breaker, inspect the outdoor condenser for debris, and unplug the unit for a quick inspection. If the issue repeats, contact Air Conditioner Service for a safe, thorough diagnosis.
Understanding breaker trips and AC loads
When your air conditioner unit trips the breaker, it signals the electrical system detected an overload or a fault drawing more current than the circuit can safely handle. This is a common symptom of electrical strain on residential AC setups, especially in warm weather when compressors run harder and longer. A breaker trip protects your home from overheating wires and potential fires. If you notice the breaker trips as soon as the AC starts, or after several minutes of operation, you likely have an electrical or mechanical fault that needs attention. In many cases, the root cause is a mix of simple issues and aging components, so a systematic approach helps keep you safe and restore cooling quickly. Air Conditioner Service recommends treating each symptom seriously and addressing it in a controlled, safe sequence.
Most common culprits behind an air conditioner unit trips breaker
Breaker trips are usually not caused by one grand failure. More often, a handful of issues—old parts, debris, or wiring faults—work together to overload a circuit. Common culprits include an overloaded branch circuit, a dirty condenser or clogged air path causing the compressor to work harder, and faulty electrical components like a capacitor or start relay. Wiring damage or a failing contactor can also create an unsafe surge that trips the breaker. By understanding these possibilities, you can prioritize checks and avoid unnecessary tinkering on live circuits. It’s important to note that some faults require professional testing with proper equipment to avoid shock or further damage.
Safety first: power down and safe testing
Electrical safety is non-negotiable when diagnosing a breaker trip. Always power down completely before touching any AC components. Turn off the thermostat, switch the corresponding breaker to OFF, and if you can safely access it, disconnect power from the outdoor condenser. Wear non-conductive gloves and use insulated tools if you must handle wiring. Never test live circuits or touch capacitor terminals; capacitors can retain a dangerous charge even when power is removed. If you’re unsure about any step, pause and contact a licensed HVAC technician—safety alarms and fire hazards are not worth risking.
Quick checks you can perform (non-destructive)
Begin with simple, non-invasive checks. Verify the thermostat alignment and confirm the unit isn’t triggering a mini-tripping cascade due to an overload on the same circuit. Inspect the air filter; a clogged filter causes the system to work harder and can indirectly contribute to electrical strain. Clear debris from the outdoor condenser and ensure it has at least 18 inches of clearance. Check for visible signs of damage on wires, loose connections at the disconnect box, and the capacitor housing (bulging or leaking). If you notice anything unusual, stop and call a pro. Small problems snowball into bigger electrical risks if mishandled.
Deeper diagnostics if simple checks pass
If basic checks don’t pinpoint the cause, it’s time for safer, more precise diagnostics. Use a multimeter to verify capacitor health—bulging tops, leakage, or low capacitance typically indicate replacement is needed. Inspect the contactor for worn or pitted contacts and listen for a sticky or burnt sound during operation. Check the wiring insulation for cracks or burn marks, and ensure all terminals are tight. If the compressor draws abnormally high current or if you detect a short, stop and have a professional perform full electrical testing and component replacement. Remember: diagnosing electrical faults requires caution and specialized tools.
When to call a professional and what to expect
Certain problems are beyond safe DIY repair—mainly anything involving live wiring, high-voltage capacitors, or compressor faults. If the breaker trips again after your checks, or you notice buzzing, burning smells, or warm surfaces, shut everything down and contact Air Conditioner Service or a licensed electrician immediately. A professional will perform a full inspection, test the capacitor and start relay, check the wiring harness and safety switches, and verify that the outdoor unit is mechanically sound. Timely professional care can prevent further damage and restore cooling sooner than attempting risky self-repair.
Prevention and maintenance tips to reduce breaker trips
Regular maintenance reduces the likelihood of breaker trips. Replace dirty or failing capacitors, tighten loose connections, clean the condenser coils, and replace air filters on schedule. Ensure the outdoor unit has clear airflow and is not exposed to excessive moisture or pests. Consider upgrading to a dedicated circuit for the AC if your current load shares a panel with other high-draw appliances. An annual professional inspection can catch wear before it leads to trips, saving energy and prolonging system life.

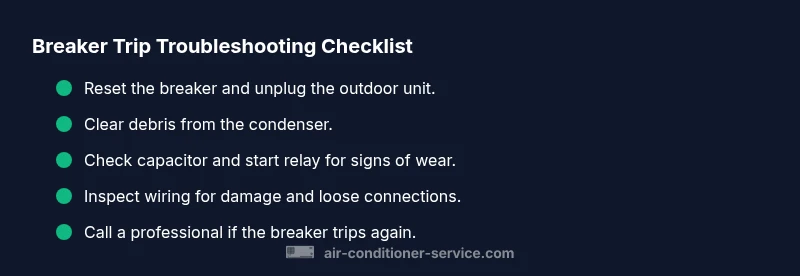

Steps
Estimated time: 20-45 minutes
- 1
Power down and safety check
Shut off the thermostat, switch the relevant breaker to OFF, and disconnect power to the outdoor unit if safe to do so. Confirm you’re not working on a live circuit and keep liquids away from electrical components.
Tip: Always wear non-conductive gloves and use insulated tools. - 2
Inspect the outdoor unit area
Clear debris, leaves, and grass from around the condenser. Ensure there is at least 18 inches of clearance on all sides for proper airflow and reduced strain on the compressor.
Tip: Good airflow prevents overheating and reduces electrical load. - 3
Check the air filter and indoor airflow
Replace a dirty filter and ensure ducts are unobstructed. Poor airflow can force the system to run longer, raising electrical demand and risk of trips.
Tip: A clean filter is a quick, low-cost preventive step. - 4
Reset the breaker and test basic operation
Turn the breaker fully OFF, wait 30 seconds, then switch it back ON. Restore power to the thermostat and run a short cooling cycle to observe if it trips again.
Tip: If it trips immediately, stop and call a pro. - 5
Visually inspect electrical connections
Look at the disconnect box and exposed wiring for scorch marks, melted insulation, or loose terminals. Do not touch live wires; if you see damage, stop and call a technician.
Tip: Loose connections create heat and arcing—common breaker trips. - 6
Test or replace the capacitor (if trained)
Using proper safety measures and equipment, test the start capacitor for bulges or leakage and replace it if measurements are out of spec.
Tip: Capacitors can retain dangerous charges; discharge safely before handling. - 7
Check the start relay and contactor
Inspect for pitting or wear; reseat or replace if necessary to ensure smooth start and avoid excessive current draw.
Tip: Sticky contactors are a frequent cause of trips. - 8
Reassemble, test, and monitor
Reconnect power and run the system for 10-15 minutes while watching for voltage surges or unusual noises. If no trips occur, gradually resume normal operation.
Tip: Document any recurring symptoms to share with a pro.
Diagnosis: Air conditioner unit trips breaker during operation
Possible Causes
- highOverloaded circuit or insufficient panel capacity
- highFaulty capacitor or start relay
- mediumWiring damage or short in components (contactor, compressor)
Fixes
- easyReset the breaker and reduce load on the circuit; unplug other high-draw devices on the same branch
- mediumTest and replace a faulty capacitor or start relay using proper safety protocols
- mediumInspect wiring for damage; reseat or replace damaged terminals and verify proper insulation
- hardIf the breaker trips again after basic checks, call a licensed HVAC technician for a full electrical diagnostic
Common Questions
Why does my air conditioner trip the breaker every time I turn it on?
Breaker trips usually indicate an electrical fault such as an overload, a failing capacitor, or a short in the start relay. Begin with safety-first checks and basic resets, then test components or call a pro if the trip repeats.
Breaker trips typically come from an overload or faulty electrical parts. Start with safety checks, then escalate to testing components or calling a pro.
Is it safe to keep resetting the breaker until it stops tripping?
No. Repeatedly resetting a tripped breaker can hide underlying faults and risk electrical damage or fire. If trips persist after basic checks, contact a licensed technician promptly.
No, don’t keep resetting. Repeated trips hide faults and can be dangerous; seek a technician if it keeps happening.
Can a dirty air filter cause a breaker to trip?
A clogged filter mainly causes overheating and reduced efficiency, which can stress the system. It’s less about tripping the breaker directly but can contribute to conditions that lead to electrical faults over time.
A dirty filter mainly causes overheating, which can indirectly lead to electrical stress. It’s worth replacing for performance and safety.
Should I test the capacitor myself?
Testing capacitors requires proper equipment and knowledge; mishandling can cause shocks or further damage. If you’re not trained, leave capacitor work to a professional.
Capacitor testing is best left to an HVAC pro due to risk of shock and damage.
When should I replace my AC unit due to frequent breaker trips?
If trips persist after professional diagnosis and replacement of faulty components, or if the unit is very old with declining efficiency, replacement may be more cost-effective than repairs.
If trips keep happening after repairs and the unit is aging, replacement may be the smarter option.
Watch Video
The Essentials
- Identify whether the breaker trips on startup or during run.
- Prioritize safety and call a pro if you encounter damaged wiring.
- Check capacitor, contactor, and overload to locate the fault.
- Routine maintenance reduces future trips and extends system life.
