Ductless Mini Split Air Conditioner Installation: A Complete How-To
Learn how to install a ductless mini split air conditioner with step-by-step guidance, tool lists, safety tips, and commissioning checks. This educational guide helps homeowners plan, mount, connect, and test a DIY-install or know what to expect from a pro.
Getting a ductless mini split air conditioner installation involves selecting the right unit, preparing the space, and following a safe, step-by-step process. This guide covers pre-install checks, tool lists, indoor/outdoor mounting, line-set routing, electrical connections, and commissioning. Note that refrigerant handling requires a licensed technician in many areas; follow local codes and safety guidelines for a successful DIY-friendly install.
What is a ductless mini split and why install?
Ductless mini split air conditioner installation is a compact cooling solution that uses two main components: an indoor air-handling unit and an outdoor condenser connected by a refrigerant line set. This configuration delivers zoned cooling with no ductwork, improving efficiency and comfort in homes with limited attic space or in room additions. In this guide, we explain the core components, how they work, and practical steps to plan your installation. This is the foundation you need before you dive into tools and wiring.
Planning and code considerations
Before you begin, check local codes, homeowner association rules, and any required permits. In many regions, electrical work and refrigerant handling are regulated; some tasks require a licensed electrician or HVAC technician. Confirm access to the outdoor area for condenser placement and ensure there is a clear path for routing the line set. If you're renting, obtain written landlord approval. Air Conditioner Service notes that safety and compliance save time and avoid rework.
System sizing and placement considerations
Correct sizing ensures comfort and efficiency. A unit that is too small will struggle in peak heat, while an oversized system may short-cycle and waste energy. Use climate data, room dimensions, and insulation quality to estimate BTU requirements. For placement, indoor units should be mounted high on a wall with good airflow and away from direct sunlight, while the outdoor condenser needs ample clearance and a stable surface. Consider noise, maintenance access, and the route from inside to outside when planning layout. Air Conditioner Service emphasizes matching capacity to room load and avoiding long refrigerant runs for efficiency.
Tools and materials you will need
A comprehensive tools list helps you avoid mid-project trips. Gather a tape measure, level, drill with the appropriate bits, stud finder, wall sleeve, refrigerant line-set kit, electrical wiring with proper gauge, a vacuum pump, manifold gauges, a refrigerant leak detector, a torque wrench, and safety equipment (gloves and eye protection). Keep a dedicated toolbox for HVAC-specific fasteners and fittings. See the Tools & Materials section for the exhaustive list.
Step 1: Prepare the indoor mounting location
Inspect the wall between studs and confirm there is a clear path for the line-set to the outdoor unit. Mark the wall for a neat sleeve opening and plan the indoor unit height, typically 6–7 feet from the floor for comfortable airflow. Use a stud finder to avoid electrical wires and pipes. Verify the wall surface can support the weight of the indoor unit.
Step 2: Prepare the outdoor location
Choose a solid mounting pad or wall mount with proper vibration isolation. Ensure at least 12–24 inches of clearance on all sides for airflow and service access. Check for shade to improve efficiency and consider corrosion-resistant mounting hardware if you live in a coastal or humid environment. Prepare a safe electrical disconnect nearby, in compliance with local codes.
Step 3: Mount the indoor unit and wall sleeve
Drill the wall through the interior mounting location to install the wall sleeve and route the line-set. Attach the indoor unit bracket securely, then hang the unit and verify level. Connect the condensate drain and ensure proper slope for drainage. Seal the sleeve to prevent drafts. This step reduces vibration and ensures quiet operation.
Step 4: Run line-set, wiring, and drain
Feed the refrigerant line-set, condensate drain line, and power wiring through the wall sleeve from inside to outside. Keep lines as straight as possible and avoid sharp bends. Use a protective conduit and wrap the line-set with insulation to minimize energy losses. Leave extra length for future service.
Step 5: Outdoor unit mounting and connections
Mount the outdoor condenser on the pad or wall bracket, close to the indoor line-set entry. Connect refrigerant lines following the manufacturer’s torque specs and seal with appropriate flare fittings. Connect electrical wiring and the condensate drain if applicable. Ensure the disconnect switch is within reach and that all connections are secure.
Step 6: Vacuum, leak test, and charge (with caution)
To avoid refrigerant leaks, evacuate the lines with a vacuum pump and test with a leak detector. Note that most jurisdictions require a licensed technician for refrigerant charging; if you lack certification, do not open or charge the system. If permitted, carefully follow the manufacturer’s charging procedure and keep a record of pressures.
Step 7: Commissioning, testing, and performance tweaks
Restore power and run the system in cooling and heating modes to confirm proper operation. Check airflow from the indoor unit, confirm correct condensation drainage, and listen for abnormal noises. Adjust thermostat calibration if necessary and set the system to energy-saving modes if available.
Common challenges and troubleshooting
If the unit runs but no cooling occurs, confirm the refrigerant charge and check for blockages in the indoor air path. If you hear rattling or buzzing, inspect mounting hardware and line-set routing for loose supports. If the outdoor unit struggles in extreme heat, verify airflow and clean the condenser fins.
Maintenance after installation
Regularly replace or clean filters, inspect the condensate drain for clogs, check for ice on the indoor coil, and schedule annual professional service for refrigerant and electrical system checks. Keeping components clean and connections tight prevents performance drops and extends system life.
Tools & Materials
- Measuring tape(at least 25 ft)
- Level(to verify horizontal alignment)
- Drill with masonry and wood bits(for wall sleeve and mounting)
- Stud finder(locate joists/wires)
- Wall sleeve and mounting hardware(per manufacturer)
- Refrigerant line-set kit (copper tubing, insulation)(ensure proper size)
- Electrical wiring with appropriate gauge(per unit specs)
- Vacuum pump(for leak testing)
- Manifold gauges(to verify pressures)
- Refrigerant leak detector(for safety)
- Torque wrench(secure flare fittings)
- Safety gear (gloves, goggles)(protective equipment)
- Electrical tape and connectors(insulation and joins)
- Condensate drain tubing and fittings(drain slope maintained)

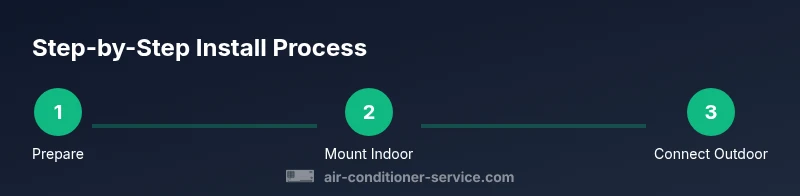

Steps
Estimated time: 4-8 hours
- 1
Prepare indoor mounting area
Assess wall integrity, locate studs, and plan for the wall sleeve. Mark height and routing path for the line-set to minimize visible runs. Confirm there is no electrical or plumbing in the planned area.
Tip: Use a stud finder to avoid hidden hazards and ensure structural support. - 2
Choose outdoor condenser location
Select a stable, level surface with ample clearance for airflow and service access. Avoid cramped corners and ensure a secure mounting option.
Tip: Place on a vibration-damping pad to reduce noise. - 3
Install indoor mounting bracket and sleeve
Mount the bracket securely, install the wall sleeve with a proper seal, and route the line-set through the wall opening. Ensure the sleeve is airtight to prevent drafts.
Tip: Leave extra line-set length for adjustments later. - 4
Run line-set, drain, and wiring
Feed insulated refrigerant lines, condensate drain, and electrical wiring through the sleeve. Keep lines tidy and avoid sharp bends.
Tip: Use protective conduit to prevent damage to lines. - 5
Connect outdoor unit and refrigerant lines
Attach refrigerant lines to the outdoor condenser using manufacturer torque specs and seal fittings. Wire the unit and ensure electrical disconnect is accessible.
Tip: Double-check torque specs to prevent leaks. - 6
Create vacuum and test for leaks
Evacuate the line-set with a vacuum pump and perform a leak test. Do not charge refrigerant unless authorized by local codes.
Tip: Keep a record of vacuum readings and pressures. - 7
Commission, test, and adjust
Power up the system, run cooling and heating modes, check airflow and drainage, and fine-tune thermostat settings.
Tip: Run a quick leak test after commissioning.
Common Questions
Do I need permits for a ductless mini split installation?
Permits vary by location; check local building codes and HOA requirements. In many cases, electrical and refrigerant work may require a permit and a licensed professional. Always verify before starting.
Permits depend on your area; check local codes and HOA rules before you begin.
Is it possible to install a ductless mini split myself?
Yes, with thorough planning, appropriate tools, and strict adherence to safety guidelines. However, refrigerant handling typically requires a licensed technician, and some jurisdictions prohibit DIY charging.
It can be DIY, but refrigerant work usually requires a licensed tech.
Can I install the outdoor unit on a balcony?
Balconies can work if there is solid mounting and adequate airflow. Check building codes and railing or balcony weight limits, and ensure vibration isolation.
A balcony can work if permitted and properly mounted.
Do I need to evacuate and charge the system?
Evacuation is essential to remove moisture and air from lines. Refrigerant charging should comply with local laws and usually requires a licensed professional.
You must evacuate and, in many cases, have a pro handle charging.
What maintenance is needed after installation?
Regular filter cleaning, drain inspection, coil cleaning, and annual professional checkups help maintain efficiency and longevity.
Keep up with filters and annual checks.
Watch Video
The Essentials
- Plan for permits and code compliance first
- Size and placement drive system efficiency
- Safety and refrigerant rules govern DIY work
- Professional service is recommended for charging
