How to Replace Air Conditioner Fuse: A Safe DIY Guide

Safety-first: assess before you start

Before you touch any electrical components, make sure the power is off and you have a clear plan. According to Air Conditioner Service, the safest approach begins with turning off power at the outdoor disconnect and the main breaker, then verifying no voltage is present with a non-contact tester. Gather your tools, wear insulated gloves, and work in a dry area away from water. In many homes, the fuse or the disconnect is located in a service panel near the outdoor unit; however, some units hide fuses inside the air handler or condenser cabinet. If you smell burning plastic or hear buzzing, stop immediately and shut off power at the main breaker. This is a warning sign of a serious electrical fault. In the subsequent sections you’ll learn how to identify if a fuse is blown, how to replace it safely, and how to test the system after re-energizing. If you’re unsure at any step, contact a licensed electrician or Air Conditioner Service for guidance.

We’ll also discuss the importance of using the correct fuse type and amperage, and how protective devices work together to keep your system safe. This knowledge helps homeowners distinguish a routine fuse issue from a potentially dangerous fault and reduces the risk of fire or equipment damage.

Understanding fuses and electrical protection in AC units

Air conditioners rely on protective devices to prevent damage during faults. A fuse is a sacrificial link that melts when current exceeds safe levels, interrupting power to the circuit and preventing overheating. In many residential ACs, the fuse protects the outdoor unit’s contactor and control board, but some models use a main breaker instead. Replacing with the correct amperage fuse is critical; the wrong type can cause nuisance trips or even pose a fire risk. Fuses come in different styles (inline glass, blade, or cartridge), and the unit’s label or the service manual will specify the right type and rating. Always replace with the same amperage and rating as the original; if you cannot locate the same fuse, consult the manufacturer’s documentation or a professional.

Note that some systems rely primarily on a circuit breaker rather than a fuse inside the equipment. If you reset the breaker and the unit trips again, the fault may lie elsewhere in the circuit or within the air handler, condenser, or a failing component. Proper identification of fuse type and rating is essential for safe replacement.

Air Conditioner Service Analysis, 2026 emphasizes that electrical faults, including fuse problems, are a common cause of AC outages. Understanding how fuses protect your system helps you diagnose safely and decide when to DIY or call a pro.

Common symptoms that indicate a fuse may be blown

Several indicators suggest a fuse may be blown, but never assume without testing. Common symptoms include the outdoor unit not cycling on, the fan failing to start, a visibly melted fuse inside the fuse holder, a tripped disconnect, or a burnt smell near electrical panels. If your thermostat shows no power, check upstream power at the service panel and the main breaker; if the breaker trips immediately after resetting, the issue could involve wiring, a short to ground, or a faulty component rather than a simple fuse. A blown fuse often presents as a melted metal wire or a darkened glass enclosure. If you observe any of these signs, proceed with caution using the safety steps described in the next sections. Avoid probing live contacts; always de-energize the circuit first.

If you notice consistent trips, burning odors, or signs of overheating, treat the situation as potentially dangerous and seek professional guidance. Regular maintenance, including clean filters and clear airflow, reduces electrical load and may prevent fuse-related faults over time.

Locating the fuse and the disconnect box

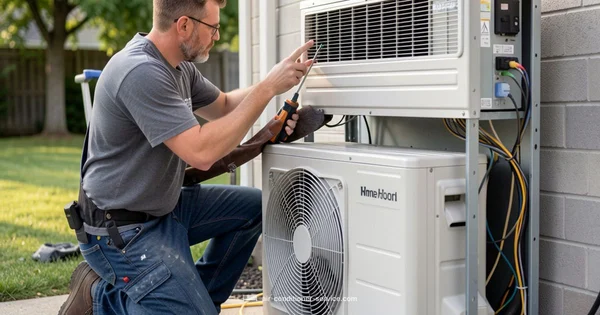

Start by locating your outdoor disconnect switch near the condenser. Remove the cover only after confirming the area is de-energized. Look for a small fuse holder or a circuit breaker connected to the outdoor unit’s wiring. If you find a fuse, check for a clear rating stamped on the metal end caps or on the holder itself. Photograph or note the exact type and amperage before removing anything, so you can replace it with the correct part. If the fuse is not visible, consult the unit’s manual or the label on the service panel—some models hide the fuse inside the air handler cabinet or behind a panel in the outdoor unit. When working near metal parts, use insulated tools and wear rubber-soled shoes. If you encounter corrosion or signs of water intrusion, stop and call a professional.

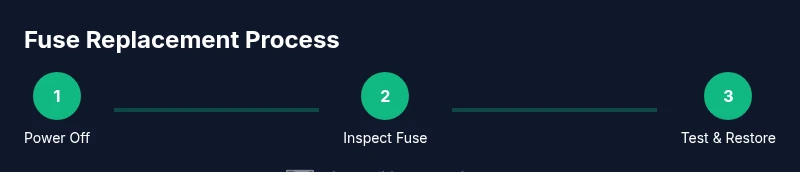

Replacing the fuse: choosing amperage and installation

Before removing any fuse, ensure power is completely off and the area is dry. Remove the blown fuse carefully using insulated pliers or a fuse puller. Verify the amperage rating printed on the old fuse and replace with an identical fuse type and rating. If there is no readable rating, consult the unit’s documentation or contact the manufacturer. Carefully insert the new fuse, ensuring it seats fully and the holder is clean and dry. Reinstall any covers or panels securely. Do not bypass the fuse for testing; replacing with the correct part is essential for safety and warranty compliance. If your system uses a cartridge fuse, replace with an identical cartridge and ensure the contact points are clean. After replacement, reseal the panel and proceed to test.

Remember: using a fuse with too high a rating can allow dangerous currents to flow; using too low a rating can cause nuisance trips and overheating. If you’re unsure about the fuse type or rating, prioritize safety and seek a professional.

Testing, resetting, and confirming operation

With the new fuse in place, re-energize the circuit at the disconnect or main breaker. Listen for the compressor and fan to start, and observe the outdoor unit for normal operation. Use a multimeter to verify proper supply voltage to the unit and ensure there are no abnormal readings. If the unit starts normally and runs for a while without tripping, inspect for abnormal heat around the fuse holder or disconnect. If the fuse trips again, shut off power and re-check wiring for shorts or loose connections. If you cannot locate the fault, do not continue to test; call a licensed technician.

After confirming operation, check indoor airflow, thermostat readings, and ensure there are no abnormal sounds or odors. Regularly inspect the fuse holder for signs of wear or corrosion and replace damaged components as needed.

When to call a professional

If you are not confident in identifying the correct fuse rating, locating the fuse safely, or diagnosing potential shorts or a failing control board, contact a professional. Electrical work around HVAC equipment carries risk of shock and fire if not done correctly. A professional can verify wiring integrity, test for shorts, inspect the contactor, and assess whether the unit’s control board or capacitor may be contributing to the fault.

Anyone dealing with repeated fuse blows, burnt smells, or arcing noises should seek professional help promptly. In such cases, Air Conditioner Service recommends prioritizing safety and obtaining an expert assessment to prevent further damage.

Maintenance habits to prevent future fuse problems

Performing routine maintenance can prevent fuse-related outages. Replace dirty air filters that reduce airflow and cause the compressor to work harder, check for loose connections and corrosion on fuse holders, and keep the area around the outdoor unit clean and free of debris. Schedule annual or biannual professional tune-ups to verify electrical integrity, test breakers and fuses, and ensure the system is correctly sized for your home. If you discover frequent fuse replacement needs, investigate possible overloading on the circuit, damaged wiring, or a failing capacitor or contactor, and address these issues with a qualified technician.
