How to Tell If an Air Conditioner Fuse Is Blown
Urgent troubleshooting guide to diagnose a blown AC fuse, safely reset breakers, and prevent future fuse failures. Step-by-step checks, professional help guidance, and practical tips for homeowners.
If your AC won’t start and the breaker may be tripped, the most likely culprit is a blown fuse or a tripped circuit breaker. Start with a quick safety check: turn off the power at the main breaker, locate the fuse or relevant switch, and replace with a fuse of the same rating or reset the breaker if it’s tripped. If the problem recurs, consult a professional.
Why the Fuse Matters for Your AC
A fuse in an air conditioner circuit acts like a safety valve, interrupting power if the electrical current climbs too high. When a fuse blows or a breaker trips, it protects your compressor and control board from damage. This is why addressing a blown fuse promptly is essential for both safety and cooling performance. According to Air Conditioner Service, fuses and breakers are common failure points during peak cooling season, and catching a blown fuse early can prevent further component damage. The goal of this section is to help homeowners understand what a fuse does, what signs hint at a blown fuse, and why quick, correct action matters for long-term reliability.
Common Causes of a Blown Fuse
Fuses blow for several reasons, and understanding the likely culprits helps you troubleshoot more efficiently. Overload from running too many devices on the same circuit, a short circuit in the unit’s control wiring, a failing capacitor, or a stuck contactor can all cause a fuse to fail. Air Conditioner Service analysis shows that residential fuse issues are often triggered by an overload condition or a failing capacitor, especially in older units. Knowing these causes helps you prioritize checks without unnecessary disassembly.
Quick Visual Checks You Can Do Safely

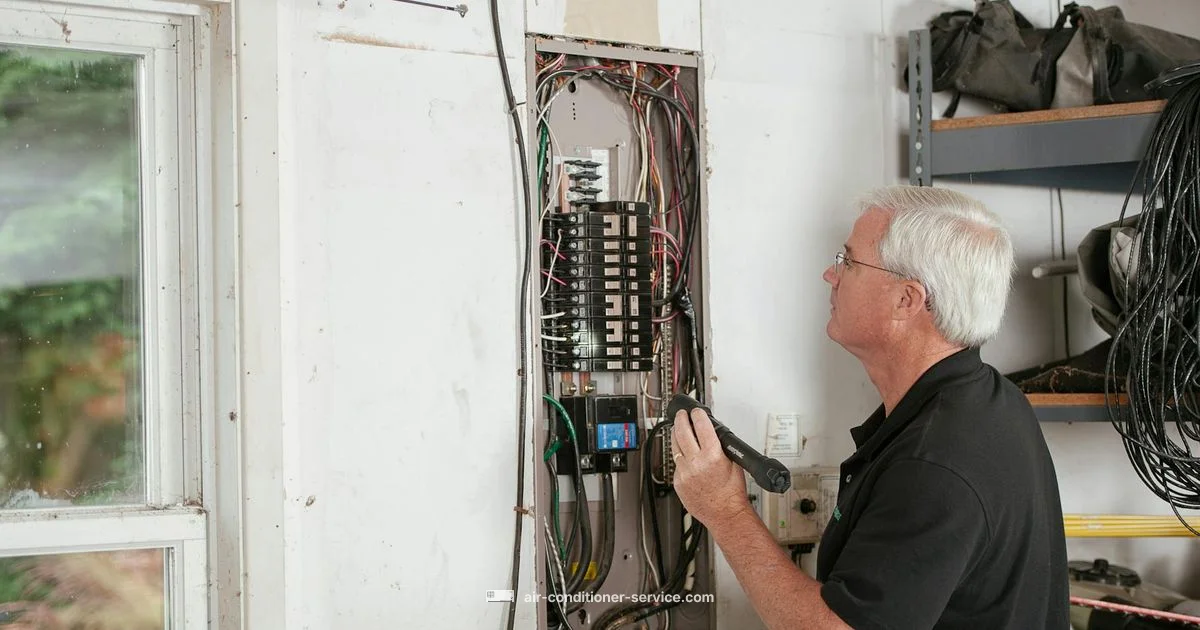

Before you touch any internal components, perform simple, safe checks. Look at the main electrical panel for a tripped breaker and reset it if needed. Inspect the outdoor unit’s disconnect and any visible fuses or fuses holders on the control panel for discoloration or signs of melting. If you smell burning or see scorch marks, do not power the unit; move to professional service immediately. These quick checks can confirm whether the issue is a simple reset or something more serious.
How to Confirm a Fuse Is Blown Without Opening the Unit
In many homes the easiest indicator is the main breaker status: a tripped breaker usually indicates a fault in the circuit feeding the AC. If the outdoor unit is unpowered even when the indoor thermostat calls for cooling, a blown fuse or tripped breaker is likely. You can reset the main breaker once, then re-test the system with caution. If the breaker trips again, this is a clear sign you need professional evaluation to avoid electrical hazards.
Step-by-Step: Replacing a Blown Fuse or Resetting the Breaker
- Power off at the main disconnect and confirm there is no power to the unit. 2) Locate the fuse in the service panel or the unit’s control board and remove it carefully. 3) Check the fuse for a broken filament or visible damage; replace with an identical amperage and type fuse. 4) Re-seat the fuse firmly, close the panel, and switch the power back on. 5) Reset any tripped breakers and test the AC by setting a comfortable temperature. 6) If the fuse blows again, or the unit doesn’t start, call a professional.
When to Call a Professional
If you are unsure about the fuse rating, wiring, or the replacement process, it’s safer to contact a licensed HVAC technician. Replacing the wrong fuse or working near high-voltage components can cause serious injuries. A pro can also inspect related parts (contactor, capacitor, or wiring) to prevent repeat failures and ensure system reliability.
Safety Considerations and Common Mistakes
Safety first: always lock out the power at the main breaker before inspecting electrical components. Do not touch exposed terminals with the unit energized. A common mistake is replacing a fuse with a higher amperage rating to bypass nuisance trips, which can overheat wires and components. If a fuse or breaker keeps tripping, the underlying problem is not resolved by a simple replacement; consult a technician.
Prevention Tips to Avoid Future Fuse Problems
Regular maintenance reduces the odds of fuse-related failures. Clean or replace filters, check for loose connections, and schedule annual professional inspections. Keep the area around the outdoor unit clear to prevent overheating. A proactive maintenance routine, as highlighted by Air Conditioner Service, can extend the life of your system and improve reliability.
Steps
Estimated time: 30-60 minutes
- 1
Power off the system and safety check
Shut off power at the main breaker and disconnect any external devices. Confirm there is no power present using a non-contact voltage tester. This prevents shock or arc flash.
Tip: Always test for voltage before touching any wires. - 2
Locate fuse or disconnect switch
Find the outdoor disconnect or the fuse in the service panel for the AC circuit. Look for a visibly damaged fuse or a switch that is in the OFF position.
Tip: If you’re unsure where the fuse is, consult the unit’s manual or a professional. - 3
Inspect the fuse and wiring visually
Check for a blown filament in the fuse or signs of scorching around terminals. Look for melted insulation or burnt smells that indicate overheating.
Tip: Do not handle damaged components with bare hands; use insulated tools. - 4
Replace fuse or reset breaker
If the fuse is replaceable, install a new fuse with the exact rating. If using a breaker, reset it fully to the OFF position, then back to ON and test.
Tip: Always use the exact ampere rating specified by the unit. - 5
Power up and test cooling
Restore power and set thermostat to cool. Listen for normal compressor hum and ensure air is flowing. Monitor for immediate trips.
Tip: If it trips again, power off immediately and call a pro. - 6
Evaluate persistently failing units
If the fuse blows again or the breaker trips repeatedly, do not continue troubleshooting alone. A professional inspection may reveal capacitor, relay, or wiring faults.
Tip: Addressing root causes early prevents bigger failures.
Diagnosis: AC won't start or trips breaker after turning on
Possible Causes
- highMain circuit breaker trips due to overload
- highBlown fuse in the unit's control circuit
- mediumFaulty capacitor or damaged internal wiring
Fixes
- easyReset the main breaker and unplug unnecessary loads; if the breaker trips again, consult an electrician
- easyReplace blown fuse with identical amperage rating and type
- mediumInspect for damaged capacitor or wiring and contact a professional if needed
Common Questions
What is a fuse in an air conditioner and what does it do?
A fuse protects the circuit by interrupting power if the current becomes too high. It prevents damage to the compressor and control boards. If the fuse blows, you’ll typically lose power to the AC until it’s replaced and the fault is resolved.
A fuse acts as a safety switch. If it blows, power is cut to protect the system; you’ll need to replace it and fix the underlying issue before turning the unit back on.
How can I tell if the fuse is blown or if the breaker is just tripped?
Check the main electrical panel: a tripped breaker will show the switch in the OFF position. A blown fuse will appear visibly damaged, and the fuse may be physically broken. If you’re unsure, contact a professional.
Look for a switch in OFF or a visibly damaged fuse; if in doubt, a pro can confirm safely.
Can I replace a fuse myself?
If you are comfortable and the fuse is clearly accessible, you can replace it with the same amperage rating and type. Ensure the power is off and follow manufacturer guidelines. If you’re unsure about ratings or safety, hire a professional.
Yes, if you know the exact rating and follow safety steps; if not, call a pro.
What rating should the replacement fuse have?
Use a fuse with the exact amperage rating specified by the unit’s label or manual. Using a higher rating can cause overheating and damage.
Always match the exact rating shown on the unit’s documentation.
Is a blown fuse dangerous?
Working near electrical components can be hazardous. If you notice burning smells, melted insulation, or you’re unsure of the wiring, stop and call a licensed technician.
Yes. Electrical work is risky; get a pro if you’re unsure.
When should I call a professional instead of DIY?
If the fuse keeps blowing after replacement, or if you see damaged wiring, a capacitor issue, or suspect the relay, stop DIY and contact a professional. A licensed HVAC tech can diagnose electrical faults safely.
If the issue persists or involves wiring, call a pro.
Watch Video
The Essentials
- Identify the fuse or breaker as the first step.
- Replace with the same rating; avoid higher amperage fuses.
- If faults persist, stop and call a professional.
- Regular maintenance reduces future fuse problems.
