In this guide, you will learn how to replace a car air conditioner compressor safely and efficiently. The process requires a clean workspace, a refrigerant recovery plan, and the correct replacement part matched to your vehicle. This article walks through prerequisites, proper tool use, step-by-step removal and installation, and reliable testing to ensure your AC system delivers cold air again.
Understanding When Replacement Is Necessary
A failing car AC compressor is a common source of warm air, reduced cooling, or odd noises from the engine bay. Replacing the compressor is often the most effective path when the clutch wears out, bearings seize, or internal valves fail. Before starting, verify that the issue isn’t caused by an easier fix, such as a clogged expansion valve or a leaky refrigerant line. According to Air Conditioner Service, diagnosing the exact fault requires a methodical evaluation of pressure readings, clutch operation, and electrical signals. If the compressor fails catastrophically, attempting temporary repairs can damage other components and lead to higher costs later. Keep in mind that some symptoms may indicate multiple issues, and a professional diagnosis can prevent misdiagnosis and unnecessary parts replacement.
A successful replacement hinges on matching the new compressor to the vehicle’s specifications, including mounting points, pulley radius, and refrigerant compatibility. You’ll also need to account for the system’s refrigerant charge and ensuring no air or moisture remains inside the circuit. Taking the time to verify these details reduces the risk of early failure and ensures the system runs at optimal efficiency after the install.
Safety First: Prerequisites and Precautions
Working on a car’s air conditioning system involves high pressure refrigerants and electrical components. Always wear eye protection and gloves, and work in a well-ventilated area. Disconnect the battery to minimize the risk of electrical shorts, and secure the vehicle on level ground with wheel chocks. Do not vent refrigerant to the atmosphere — you must recover it with approved equipment and comply with local environmental regulations. Keep a fire extinguisher nearby, and avoid open flames near the refrigerant lines. Finally, confirm that you have the correct replacement compressor model for your car’s make, model, and year to prevent fitment issues during installation.
Tools and Materials You’ll Need
Gather everything before you start to avoid delays. Essential items include a metric and SAE socket set, flare-nut wrenches, ratchet, torque wrench, a replacement compressor, new O-rings or gaskets, a refrigerant recovery machine, a vacuum pump, a manifold gauge set, and the appropriate refrigerant for your vehicle. You’ll also want a set of screwdrivers, Pliers, PPE (gloves, goggles), wheel chocks, a jack and jack stands, sealant or lubricant recommended by the vehicle manufacturer, and a clean drain pan for any residual fluids. Having fresh oil for the compressor (as specified by the manufacturer) is also helpful for a smooth startup after installation.
The Removal Process: What to Expect
Removing the old compressor involves gaining access to the unit, disconnecting the refrigerant lines and electrical connectors, and removing mounting bolts. Expect some oil to leak when lines are detached, so prepare a catch pan. The belt drive and tensioner may need to be removed to access the compressor mounting. Throughout the process, label or photograph connections to ensure correct reassembly. Remember, this is a complex job that can affect the entire HVAC system if performed incorrectly. Take breaks when needed and keep your workspace organized to avoid missing small but critical bolts or seals.
Installing the New Compressor: Key Steps
Before installing, compare the new unit to the old compressor to verify dimensions, mounting points, and pulley alignment. Install new O-rings on all hose connections and lubricate seals per the manufacturer’s guidance. Attach the compressor to its mounting bracket, tighten fasteners to the specified torque, and reconnect the refrigerant lines and electrical connectors. Ensure all hoses are routed correctly and that there are no kinks or interference with belts. A clean, careful installation reduces the risk of pressure leaks and premature wear.
Evacuation, Recharging, and Leak Testing
Once the new compressor is mounted, evacuate the system with a vacuum pump to remove moisture and air. After achieving a deep vacuum, recharge with the correct refrigerant charge for your vehicle, using a manifold gauge set to verify pressures match factory specifications. Perform a leak test by applying a soapy solution to connections or using an electronic leak detector. If a leak is detected, recheck all seals and lines before running the compressor. This phase is essential to prevent refrigerant loss and ensure the system cools effectively.
Post-Replacement Check and Maintenance
With the system charged and running, check for normal clutch operation and listen for unusual noises. Verify that the cabin reaches the expected cooling temperature and that there is consistent airflow. Periodically inspect lines and hose fittings for signs of oil leaks, which can indicate seal failures. Keeping the system clean and free of debris helps protect the new compressor and extends its life. Finally, record the service details, including refrigerant type, charge amount, and part numbers, for future maintenance.
DIY vs Professional Service: When to Call Help
Replacing a car AC compressor can be a rewarding DIY project for experienced enthusiasts, but it involves specialized tools and refrigerant handling that many homeowners may not safely perform. If you’re uncertain about evacuating the system, handling refrigerant, or working around the belt drive, it’s wise to seek professional service. A certified automotive technician can confirm compatibility, perform a proper recovery and recharge, and ensure the system meets emissions and safety standards. When in doubt, consult a reputable shop—your car’s cooling performance and environmental responsibility depend on it.
Authority Sources and References
- https://www.nhtsa.gov/ (National Highway Traffic Safety Administration) – safety guidelines for vehicle maintenance and repair.
- https://www.popularmechanics.com/ (Popular Mechanics) – practical, consumer-focused automotive repair guidance.
- https://www.sae.org/ (SAE International) – technical standards and industry best practices for automotive components.
Tools & Materials
- Socket set (metric and SAE)(Incl. deep sockets for tight spaces)
- Flare-nut wrenches(To avoid rounding fittings on line connections)
- Torque wrench(Use manufacturer torque specs for bolts)
- Replacement AC compressor(Match year, make, model; include new O-rings)
- New hoses/O-rings and gaskets(Replace all seals to prevent leaks)
- Refrigerant recovery machine(Follow environmental regulations)
- Vacuum pump(For moisture removal before recharge)
- Manifold gauge set(Check system pressures after recharge)
- Refrigerant (matching vehicle)(Avoid mixing refrigerants; abide by local laws)
- PPE: safety glasses, gloves(Protect from refrigerant exposure)
- Drain pan(Catch residual oil and coolant)
- Wheel chocks(Prevent vehicle movement during the job)
- Jack and jack stands(Raise and support vehicle safely)
- Lubricant/gear oil as specified(Use only if manufacturer requires for the compressor clutch)

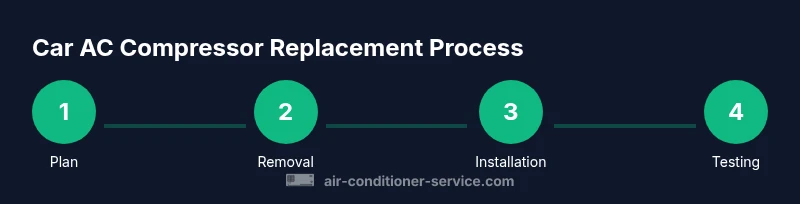

Steps
Estimated time: 3-5 hours
- 1
Plan and review the service manual
Inspect the vehicle service manual to confirm the correct replacement compressor model and torque specs. Verify environmental requirements for refrigerant handling. This planning step minimizes fitment issues and ensures you have all necessary tools at hand.
Tip: Double-check model numbers and refrigerant type before ordering parts. - 2
Safely disconnect power and depressurize
Disconnect the negative terminal of the battery to prevent shorts. Access the A/C system and prepare for depressurization using proper recovery equipment; never crack lines without recovery. This reduces the risk of injury and avoids releasing refrigerant improperly.
Tip: Always wear protective gear and confirm the system is depressurized before touching fittings. - 3
Recover refrigerant with approved equipment
Connect the recovery machine and follow the manufacturer’s instructions to remove refrigerant from the system. Store recovered refrigerant per local regulations and prepare for subsequent recharge. This step is essential for environmental compliance and system efficiency.
Tip: Document the recovered amount for reference and warranty considerations. - 4
Raise the car and access the compressor
Secure the vehicle on jack stands and remove the drive belt to access the compressor mounting. Label hoses and electrical connectors to simplify reassembly. Check for damaged hoses or brackets before loosening bolts.
Tip: Support the belt tensioner so the belt doesn’t snap back during removal. - 5
Disconnect lines, hoses and remove the old unit
Loosen and remove refrigerant lines and electrical connectors. Remove the mounting bolts and carefully extract the old compressor. Watch for residual oil in the lines and prepare to install new seals.
Tip: Keep the old compressor upright to minimize oil loss. - 6
Prepare and install the replacement compressor
Compare new and old compressors for compatibility. Install new O-rings or gaskets and lubricate as required. Mount the unit with correct torque, reconnect lines and wiring, and verify routing to avoid interference with belts or hoses.
Tip: Use a torque wrench and follow the manufacturer’s torque specs exactly. - 7
Evacuate, recharge and test
Vacuum the system to remove moisture, then recharge with the correct refrigerant charge using a manifold gauge. Run the compressor and inspect for leaks; verify pressures match the vehicle’s specifications. This ensures optimal cooling performance and long-term reliability.
Tip: If pressure readings drift, recheck seals and line connections before final testing. - 8
Finalize checks and document
Run the engine with AC on max, check for consistent cold air, and listen for abnormal noises. Inspect for any oil leaks from seals after the system stabilizes. Record part numbers, refrigerant type and charge amount for future service.
Tip: Keep a maintenance record in the vehicle’s notebook for future reference.
Common Questions
Is replacing a car AC compressor a DIY-friendly task?
It can be doable for experienced DIYers, but it involves refrigerant handling and system vacuum testing that many homeowners find challenging. If you’re unsure about recovery or charging, consider professional service.
Replacing a car AC compressor can be doable for experienced DIYers, but refrigerant handling and testing may require a pro.
Do I need to evacuate the system before removing the compressor?
Yes. Evacuation removes moisture and air, reducing the risk of contamination and poor performance after recharge. Use an approved vacuum pump and follow the steps in your service manual.
Yes. Evacuate the system before removing the compressor to prevent moisture and air issues.
How long does a typical replacement take?
A typical replacement can take several hours depending on vehicle access and tool availability. Plan for 3-5 hours, plus testing after recharge.
Typically a few hours, around 3 to 5, depending on the car and tools.
What are signs of a failing compressor after replacement?
Common signs include warm air, abnormal noises, low cooling output, or refrigerant leaks near the compressor. If these occur, recheck connections and charges.
Look for warm air, odd noises, or leaks after replacement.
Can I reuse old refrigerant after replacement?
No. Refrigerant must be recovered, disposed of properly, and the system recharged with fresh refrigerant following the manufacturer’s charge specification.
No, you must recover and recharge with fresh refrigerant.
What are common mistakes to avoid?
Avoid venting refrigerant, skipping the vacuum stage, or over-tightening fittings. Misrouting hoses or failing to replace O-rings can cause leaks and premature failure.
Avoid venting refrigerant and skipping the vacuum step.
Watch Video
The Essentials
- Plan with the manual and safety gear before starting
- Recover refrigerant legally and safely
- Match the replacement compressor to your vehicle
- Vacuum, recharge, and leak-test the system for best results
