Air Conditioner Replace Compressor: A Homeowner's Guide
A practical, safety-focused guide to replacing an air conditioner compressor, covering compatibility, tools, step-by-step instructions, and post-install testing. Learn when to DIY vs. hire a pro and how to avoid common mistakes.
By following these steps, you’ll replace an air conditioner compressor safely and effectively. The guide covers identifying failure symptoms, choosing a compatible compressor, evacuating refrigerant, performing the swap, and testing the system after recharging. You’ll need basic HVAC tools, refrigerant handling knowledge, and proper safety procedures. Expect several hours for a typical residential unit and always confirm local codes before starting.
What a failing compressor looks like and when replacement is necessary
The compressor is the heart of the refrigerant cycle. When it fails, a central symptom is warm or only partially cooled air, but there are other signs homeowners should watch for. Common indicators include unusual noises (clanking, grinding, or high-pitched whines), frequent tripping of the outdoor unit breaker, or oil pooling around the condenser. Sometimes a compressor won’t start at all, resulting in an instant loss of cooling. A failure can stem from wear and age, overheating, electrical issues, contaminated refrigerant, or insufficient lubrication. Before deciding on replacement, a technician should confirm the root cause and check the rest of the system, including the outdoor condenser, indoor evaporator, and refrigerant charge. According to Air Conditioner Service, proper diagnosis is essential to avoid unnecessary parts swaps and ensure the system is evacuated correctly before any replacement takes place. If the unit has multiple failures or if the refrigerant circuit has been contaminated, replacement is usually more cost-effective and reliable than repairing individual components.
For the homeowner, this block frames the decision point: is the compressor truly the culprit, or could a simpler repair restore cooling? If you’re seeing the described symptoms and the rest of the system is aging or damaged, moving toward a compressor replacement becomes a reasonable option.
Safety and liability: when to DIY vs hire a pro
Replacing a compressor involves high voltages, refrigerant handling, and the need to maintain a sealed refrigerant circuit. It also requires knowledge of local codes for recovering and recharging refrigerant, plus the proper disposal of old parts. DIY work can be educational and cost-saving for experienced DIYers, but the risks are non-trivial: a misstep can cause injury, worsen a leak, or void warranties. If you lack experience with electrical panels, refrigerant recovery equipment, or brazing/soldering copper lines, hiring a licensed HVAC technician is the safer choice. The Air Conditioner Service team recommends evaluating your comfort level with a multi-hour, technically demanding job and prioritizing safety above all. Always follow lockout-tagout procedures and wear protective gear to prevent electrical shock and refrigerant exposure.
How to choose the right compressor: compatibility and specs
The replacement compressor must be compatible with your outdoor unit’s refrigerant type, operating voltage, and port connections. Pay attention to displacement (tonnage), compressor type (reciprocating vs. rotor/scroll), oil type and fill, and the number of refrigerant ports. You should also match the mounting configuration (vertical/horizontal) and ensure the new unit’s electrical terminals align with your wiring harness without forcing connectors. The refrigerant charge and oil volume are rated for the compressor model and the overall system, so a mismatch can reduce efficiency or cause a new failure. When in doubt, verify the exact model number on the old compressor, consult the equipment manufacturer’s service bulletin, and consult a professional if the data isn’t readily available. This is where Air Conditioner Service emphasizes accuracy: wrong parts can lead to poor cooling and accelerated wear.
Preparing the installation: tools, workspace, and safeguards
Set up a clean, well-lit workspace with ample room around the outdoor unit. Before touching anything, shut off power at the disconnect and the main breaker, and use a lockout-tagout device. Gather all required tools: a torque wrench, wrenches and sockets, screwdrivers, a refrigerant recovery machine, a manifold gauge set, a vacuum pump, and fresh refrigerant oil and a replacement dryer (or filter). Label each wire and line, take photos of the original connections, and inspect the line set for damage and corrosion. Keep a spill kit handy and ensure good ventilation when working outdoors. A careful prep step reduces the risk of leaks and helps ensure a clean installation.
The replacement workflow at a glance
This section provides an overview of the anticipated workflow without duplicating the step-by-step instructions. You’ll confirm the refrigerant charge, isolate and recover refrigerant, remove the old compressor, install the new unit with proper torque on all fasteners, replace the dryer, and evacuate the system to remove air and moisture before recharging to the correct service pressures. The sequence prioritizes safety and system integrity; one misstep can require rework or lead to inadequate cooling. Keep in mind that refrigerant handling is regulated; always follow local requirements and consider professional support if you’re uncertain about any stage.
Post-install test and refrigerant considerations
After installation, perform a leak check on all connections and brazed joints. Use a vacuum pump to evacuate the system for at least 30–60 minutes, then pull a deep vacuum according to the equipment’s guidelines. Recharge the system with the correct type and amount of refrigerant as specified by the equipment label and service data. Start the unit and monitor pressures, superheat/subcooling, current draw, and outlet air temperatures. Look for odd noises, vibrations, or cooling fluctuations. If the system fails to reach proper pressures or doesn’t maintain the programmed subcooling, recheck connections and the dryer’s integrity. This stage ensures you don’t seal in moisture or air, which would compromise performance.
Authority references and safety best practices
For reliable, code-compliant information, refer to the following sources:
- EPA: Section 608 Refrigerant Recovery and Handling - https://www.epa.gov/section608
- OSHA Safety and Health for HVAC Work - https://www.osha.gov
- DOE/ENERGY:HVAC Maintenance and Best Practices - https://www.energy.gov/eere/buildings/articles/hvac-maintenance
These references provide official guidelines for refrigerant handling, worker safety, and maintenance best practices that informed this guide.
Tools & Materials
- Lockout/tagout device(Shut off power to outdoor unit and lock out)
- Screwdrivers (phillips and flat)(For covers and panels)
- Wrenches and sockets set(Proper sizes for line fittings and bolts)
- Torque wrench(To spec on mounting bolts)
- Refrigerant recovery machine(For safe refrigerant removal)
- Manifold gauge set(For pressure checks during charging)
- Vacuum pump(Create a dry, air-free system)
- New compressor (compatible model)(Exact match to outdoor unit data)
- Refrigerant oil and dryer/receiver(Match oil type and replace dryer if needed)
- Copper line welding/brazing equipment(If line work is required)
- Rags, leak detector spray, soap bottle(For leak testing and cleanup)
- Personal protective equipment (gloves, goggles)(Safety first during high-pressure work)

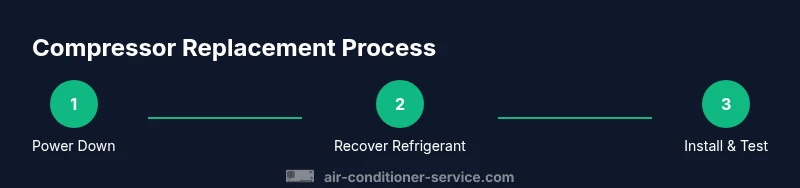

Steps
Estimated time: 3-6 hours
- 1
Power down and isolate
Shut off power at the outdoor disconnect and main panel. Use a lockout-tagout device to prevent accidental restart during the replacement. This protects you from shock and potential energization of the compressor.
Tip: Take photos of existing wiring before disconnecting anything to aid reassembly. - 2
Recover refrigerant and evacuate
Attach the recovery machine and recover the refrigerant following local regulations. Once recovered, evacuate the system with a vacuum pump to remove moisture and air from the refrigerant circuit.
Tip: Never loosen line fittings until the system is fully evacuated to avoid contaminating the refrigerant. - 3
Disconnect lines and wiring
Label and detach the electrical connections and refrigerant lines from the old compressor. Cap or seal open ports to minimize moisture intrusion. Check for line damage and replace any corroded fittings.
Tip: Seal open joints with caps or red lubricants to prevent debris entry. - 4
Remove the old compressor
Unbolt the compressor from its mounting, disconnect the line set and electrical harness, and carefully remove the unit. Inspect the mounting frame for stress or cracks and replace if needed.
Tip: Note the orientation of the compressor to ensure correct installation of the new unit. - 5
Prepare the new compressor
If required, pre-fill the compressor with the manufacturer's recommended oil and install the dryer/receiver. Verify port sizes and ensure the new compressor is oriented correctly for line connections.
Tip: Do not overfill the compressor with oil; follow data sheet guidance. - 6
Install the new compressor and connect lines
Mount the new compressor, torque bolts to spec, and reconnect the line set and electrical harness. Check for leaks around joints before pressurizing.
Tip: Use new O-rings on all line connections to prevent leaks. - 7
Evacuate, charge, and test
Evacuate again if needed, then recharge with the correct refrigerant amount per service data. Start the system and monitor pressures, temperature difference, and current draw. Verify operation and absence of leaks.
Tip: Monitor subcooling and superheat values to confirm proper charging.
Common Questions
Is compressor replacement worth it vs. replacing the entire outdoor unit?
If the rest of the system is in good condition and the compressor failure is isolated, replacement can extend the unit’s life at a lower cost than full replacement. If multiple components are failing or the unit is old, replacement may be more cost-effective in the long run.
If only the compressor failed and the rest of the system is solid, replacement can be cost-saving; otherwise consider total unit replacement.
Can I replace a compressor myself?
Replacing a compressor involves refrigerant handling, electrical work, and precise charging. It is technically demanding and regulated in many areas. A licensed HVAC technician is typically required for safety and compliance.
It’s a challenging job that often requires a pro for safety and codes.
What refrigerant type will the new compressor require?
The refrigerant depends on your system’s design. Use the same type as originally installed and ensure the oil and dryer are compatible with that refrigerant.
Stick to the original refrigerant type and verify oil compatibility.
How long does compressor replacement typically take?
Replacement generally takes several hours, depending on access, refrigerant handling, and whether line work is required. Expect a window of a few hours to half a day for a standard residential unit.
Usually several hours, sometimes more if line work is needed.
What safety steps are essential?
Always lock out power, use proper PPE, recover refrigerant legally, and avoid working with pressurized lines without proper tools. Ensure good ventilation when outdoors.
Lockout power, wear PPE, recover refrigerant, and ventilate your work area.
Should I replace the dryer and update other components?
Replacing the dryer or receiver is often recommended when replacing the compressor, to prevent blockages and moisture from entering the new unit.
Yes—consider updating the dryer when you replace the compressor.
Watch Video
The Essentials
- Plan safety first and confirm root cause before replacement.
- Match compressor type, oil, and refrigerant to the system data.
- Recover refrigerant and evacuate to avoid moisture and air in the system.
- Leak-check after installation and before charging.
- Hire a pro if unsure about any step or local code requirements.
