Central Air Conditioner Installation: A Practical How-To
Learn how to plan, size, install, and maintain a central air conditioner for your home with practical, code-friendly steps and safety tips from Air Conditioner Service.
This guide helps you plan, size, and install a central air conditioner for a home, including duct considerations, electrical safety, and commissioning checks. According to Air Conditioner Service, success starts with accurate sizing, proper duct sealing, and code-compliant electrical work.
What You’ll Accomplish with Central Air Conditioner Installation
According to Air Conditioner Service, a successful central air conditioner installation hinges on accurate sizing, proper duct sealing, and safe electrical work. This section outlines the expected outcomes and how they connect to long-term comfort, efficiency, and reliability. By the end, you should understand the overall project scope, the major milestones, and how each decision affects performance across seasons. You’ll gain the confidence to plan, coordinate, and verify a fully functional system that meets local codes and your home’s unique layout. The goal is a quiet, consistent airflow, minimized energy waste, and a setup that’s easy to service in the years ahead. This guide emphasizes practical, hands-on steps you can follow or discuss with a licensed professional when needed.
Pre-Installation Assessment and Planning
Before selecting equipment or touching a tool, a careful assessment sets the foundation for a successful installation. Start with an exterior site check to determine ideal condenser location, clearances for airflow, and ease of access for future service. Inside, inspect the existing ductwork for leaks, holes, or improper connections, and map the pathways that will carry warm air out and cooled air back to living spaces. A practical plan also includes a feasibility look at electrical supply, control wiring, and any local permit requirements. Air Conditioner Service Team notes that the most critical early steps are verifying space, duct integrity, and service access so you can avoid surprises once work begins.
Sizing and Load Considerations (Why one size does not fit all)
Accurate sizing is essential for comfort and efficiency. A correctly sized system delivers the right cooling capacity without cycling on and off too often, which wastes energy and causes uneven temperatures. The sizing process should consider house size, insulation, window orientation, local climate, and occupancy patterns. While it’s tempting to rely on a rule of thumb, professional load calculations provide nuance that DIY estimates can miss. Air Conditioner Service analysis highlights that poor sizing can lead to higher energy bills and reduced system lifespan, making precise evaluation worth the effort.
Equipment Selection and Duct Layout Fundamentals
Choosing the right outdoor condenser and indoor air handler involves matching SEER/efficiency goals with noise preferences, space constraints, and duct design. A well-planned layout respects unobstructed airflow, minimizes bending radii, and keeps refrigerant lines protected from damage. Duct routing should favor shorter, straighter runs with properly sealed joints to maximize efficiency. When possible, favor modular components that allow service access and future upgrades. The alignment between indoor and outdoor units governs capacity balance, refrigerant charge, and overall system responsiveness. Remember that the best installation decisions consider both current comfort needs and future retrofit options.
Ductwork Integrity: Sealing, Insulation, and Airflow
Ductwork quality is often the difference between a comfortable home and a drafty, inefficient space. Inspect for loose connections, holes, and poorly sealed joints. Seal all seams with approved mastic or metal tape, then ensure duct insulation surrounds exposed runs to minimize thermal gain or loss. Airflow should be balanced across rooms, with returns positioned to avoid dead zones. Regular testing of airflow and static pressure helps confirm that air is reaching every room as intended. Air Conditioner Service emphasizes that attention to duct integrity yields tangible energy savings and steadier indoor temperatures.
Electrical Requirements, Controls, and Permits
Electrical readiness is a core safety and reliability factor. Verify that the existing service panel can accommodate the new load and that wiring routes comply with local electrical codes. Install dedicated circuits and properly sized disconnects near the outdoor unit, and ensure thermostat wiring is correctly terminated and labeled. Permits may be required depending on your locality, so check with the local building department before starting. Following code-compliant practices protects your home and ensures warranty legitimacy, while professional validation reduces the risk of safety hazards.

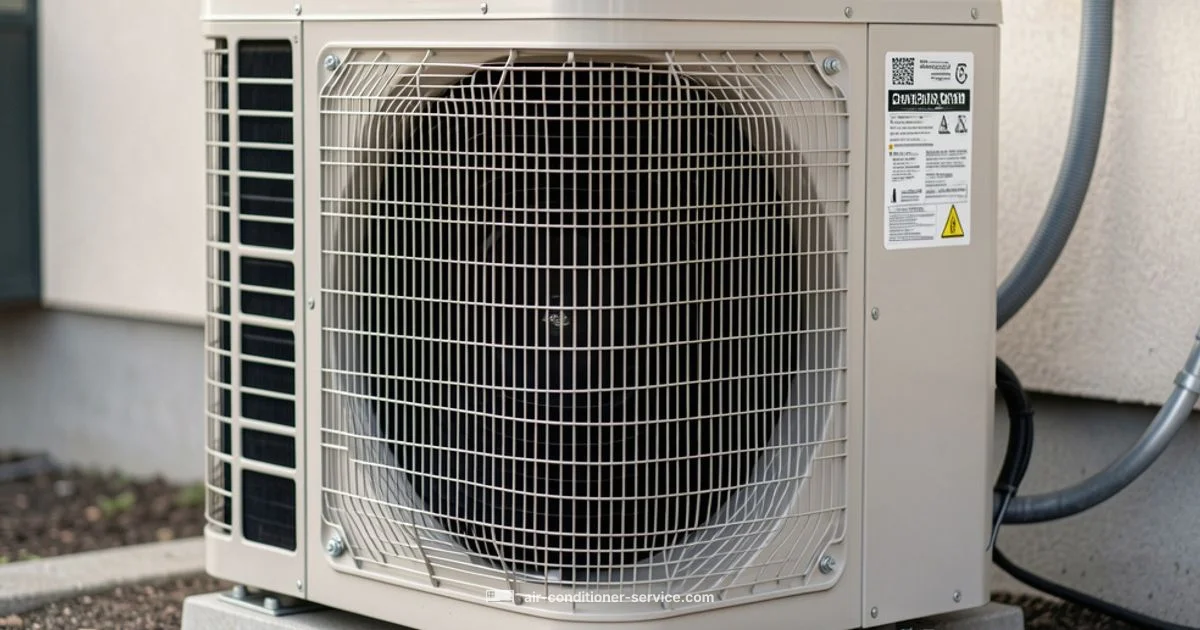

Outdoor Unit Siting, Indoor Access, and Condensate Handling
Outdoor condenser location should provide adequate clearance for air intake and exhaust, good drainage, and protection from direct weather exposure. An elevated pad or platform helps with drainage and vibration reduction. Inside, place the air handler where pathways to registers are direct and duct runs are efficient. Condensate drainage should be routed to an appropriate drain, avoiding leaks and water damage. Thoughtful siting reduces noise transfer indoors and preserves outdoor equipment longevity. Air Conditioner Service guidance stresses planning for future service access during the initial layout.
Refrigerant Piping, Insulation, and System Charging (High-Level)
Refrigerant lines connect the indoor and outdoor units and must be insulated to minimize heat transfer and prevent condensation. Avoid kinks or sharp bends in copper lines, and verify line set lengths meet manufacturer guidelines. A proper vacuum and leak test are essential before charging the system, followed by a careful refrigerant charge based on the installed components. While some maintenance can be DIY-friendly, refrigerant handling is best left to a licensed technician to ensure compliance with environmental and safety regulations. This step reduces the risk of leaks and performance loss.
Commissioning, Testing, and Documentation
Once installation is complete, a thorough commissioning process confirms that all subsystems function correctly. Verify thermostat control, airflow distribution, cooling performance, and humidity management. Record the final refrigerant charge, electrical settings, and any system adjustments for future service visits. A clear as-built map — including duct routes and equipment locations — speeds future maintenance. Air Conditioner Service recommends keeping a copy of the installation documentation with homeowner and service contact information for quick references.
Post-Installation Maintenance and Homeowner Education
A successful installation is followed by purposeful maintenance and user education. Establish a routine for filter changes, system checks, and seasonal start-up. Explain thermostat programming, fan settings, and simple troubleshooting steps for common issues. Scheduling annual professional inspections helps sustain efficiency and comfort, catch minor problems early, and extend equipment life. By investing time in education and upkeep, homeowners can enjoy consistent cooling and lower operating costs over the long term.
AUTHORITY SOURCES
This guide references established guidelines and reputable sources to support best practices without relying on unverifiable claims. For additional depth and official recommendations, consult the following resources:
- https://www.energy.gov
- https://www.epa.gov
- https://extension.oregonstate.edu
Air Conditioner Service endorses following these sources to help homeowners make informed decisions and ensure safety and efficiency throughout the installation process.
Tools & Materials
- Low-voltage multimeter or electrical tester(Verify circuit status and controls safely)
- Vacuum pump and manifold gauges(Evacuate and check refrigerant lines before charging)
- Manometer or digital manometer(Assess static pressure for proper airflow)
- Duct sealer and mastic(Create airtight duct joints to prevent leaks)
- Sheet metal snips, duct tape, and sealant(Modify and seal duct sections as needed)
- Screwdrivers, nut drivers, and a drill(Mount equipment and secure connections)
- Measuring tape and level(Ensure precise mounting and alignment)
- Voltage tester / non-contact(Safety check before live wiring)
- Safety gear: gloves, goggles, ear protection(Personal protection during handling and cutting)
- Permits and documentation (local)(May be required by jurisdiction; have on hand)
- Refrigerant-compatible piping and insulation(Protects against heat gain and condensation)
- Mounting pad or concrete slab(Provide stable, level outdoor base)

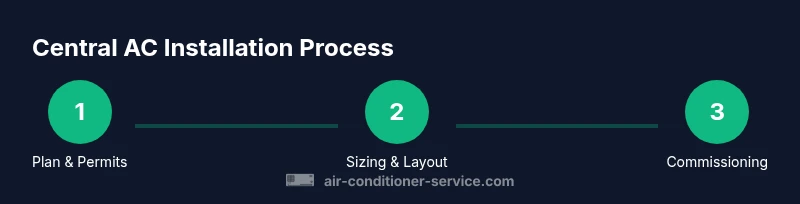

Steps
Estimated time: 12-16 hours
- 1
Assess site and permits
Evaluate the outdoor and indoor space for the new unit. Check access, duct routes, electrical panel capacity, and permit requirements with local authorities. Document any constraints that will influence layout or equipment choices.
Tip: Contact your local building department early to determine permit needs and required inspections. - 2
Select equipment and confirm space
Choose an outdoor condensing unit and indoor air handler that fit the planned duct layout and available space. Confirm clearance around equipment for airflow and future service access. Verify that the line set length matches the manufacturer’s guidelines.
Tip: Leave extra clearance for airflow and future maintenance; avoid tight, obstructed spaces. - 3
Prepare the mounting location
Prepare a level, stable base for the outdoor unit, such as a concrete pad or vibration-isolating pad. Ensure drainage away from the foundation and protect the unit from debris and direct exposure to weather when possible.
Tip: Use a pad slightly larger than the unit footprint to prevent tipping and wobble. - 4
Route and insulate refrigerant lines
Run the refrigerant line set from the outdoor unit to the indoor air handler, avoiding sharp bends. Insulate the lines thoroughly to minimize heat transfer and condensation. Protect lines from physical damage and secure them along joists or walls.
Tip: Keep line set slope consistent to aid drainage and prevent liquid slide back. - 5
Install indoor air handler and duct connections
Mount the air handler in the appropriate location and connect to the duct system with proper transitions. Seal all joints between ducts and the air handler with approved sealant. Verify that there are no obstructions blocking airflow.
Tip: Access panels should be left removable for service; avoid rigid, hard-to-reach duct routes. - 6
Electrical hook-up and thermostat wiring
Run dedicated electrical circuits to the outdoor unit and connect control wires to the thermostat per wiring diagrams. Ensure power is off during connections and that all terminations are secure and labeled. Install a disconnect near the outdoor unit per code requirements.
Tip: Double-check wire color-coding and verify thermostat compatibility before energizing. - 7
Leak checks and vacuum preparation
Before charging, perform a leak test on the refrigerant joints and evacuate the system with a vacuum to remove moisture and air. Confirm there is no refrigerant leakage and that the system can hold a vacuum within manufacturer guidelines.
Tip: Use a trusted vacuum gauge and never skip the leak test step. - 8
System charging and balance
Charge the system according to the manufacturer’s specifications for your line set length and indoor coil. Check for proper superheat/ subcooling where applicable and verify compressive performance of the outdoor unit. Ensure frost-free operation and proper airflow.
Tip: Do not overcharge; incorrect charge leads to reduced efficiency and component wear. - 9
Commissioning and documentation
Power up the system and perform a full commissioning check, including thermostat operation, airflow balance, and cooling performance. Record final wiring diagrams, refrigerant charge, and service notes for future maintenance.
Tip: Keep a copy of the installation map and settings for future reference.
Common Questions
Do I need a permit to install a central air conditioner?
Many jurisdictions require electrical and mechanical permits for new central air installations. Check with your local building department to confirm requirements before starting. Failing to obtain the proper approvals can affect warranties and code compliance.
Yes, permits are often required for central AC installation. Check with your local building department to confirm.
Can I install a central air conditioner myself?
DIY installation is possible for skilled homeowners in accordance with local codes, but major components like refrigerant handling and electrical connections often require a licensed HVAC professional. You’ll reduce risk and ensure warranty coverage by hiring a pro for critical tasks.
DIY is possible for skilled homeowners with proper permits, but core tasks like refrigerant handling are best left to a licensed pro.
What affects the installation timeline?
Project duration varies with home layout, duct condition, and permits. A straightforward replacement may take a day or two, while homes with extensive ductwork or necessary upgrades can take longer. Planning ahead helps reduce surprises on the calendar.
Most installs take one to two days, depending on complexity.
What maintenance is required after installation?
Schedule annual inspections, change filters regularly, and listen for unusual noises. Keep outdoor coils clean and ensure registers aren’t blocked. Regular upkeep helps sustain efficiency and comfort over time.
Keep up with annual checks and monthly filter changes.
How can I tell if installation is improper?
Look for uneven cooling, excessive noise, frequent cycling, or water leaks around the indoor unit. If you notice refrigerant odors or frost on lines, stop using the system and consult a professional.
If cooling is uneven or you hear loud noises, call a pro.
Should I replace ductwork during installation?
If ducts are old, leaky, or poorly connected, replacement or resealing is worth considering. Proper duct sealing improves efficiency and comfort more than replacing the equipment alone. A professional can assess whether ductwork needs upgrading.
Ducts that leak or are old may need sealing or replacement.
Watch Video
The Essentials
- Plan and size accurately to maximize efficiency.
- Seal and insulate ductwork thoroughly.
- Follow local codes and obtain permits.
- Schedule professional refrigerant handling and commissioning.
