How to Put an AC in a Crank Window: Practical Guide
Learn how to safely install an air conditioner in a crank window, covering sizing, mounting, insulation, and safety tips with Air Conditioner Service.
This guide shows homeowners how to put an air conditioner in a crank window, including sizing, mounting, sealing, and power considerations. You’ll learn a practical, step-by-step approach with safety checks and essential tools to ensure a secure, energy-efficient installation.
Crank windows: what makes installation different
Crank-operated windows are common in older homes and some apartments. They use a hand crank to raise and lower the sash, which affects how you mount a window air conditioner. The sash movement creates a narrow, shifting opening that can lead to air leaks if the unit isn’t properly braced and sealed. According to Air Conditioner Service, crank-window installations require careful attention to window width, sill strength, the unit’s weight distribution, and the mounting mechanism. Some crank windows can accommodate compact, lightweight units; others may accept larger models with the right mounting kit. Before you begin, inspect the window frame for rot, cracks, or warping. If the frame is damaged, stop and repair the sill first. A compromised frame can fail under load, causing injury and leaks. Measure the width of the opening at several heights to identify maximum clearance. For crank windows, it’s also essential to gauge how deep the unit will sit inside the room to ensure proper venting. External brackets, foam insulation, and weather-stripping are often required to create a stable, airtight seal that minimizes drafts while providing a clear vent path for exhaust.
Is your crank window ready for a window AC? Compatibility and preparation
Crank windows vary widely in design, so not every unit fits every opening. Start by checking the sash alignment and the maximum sash travel distance. If the sash cannot lift high enough to allow the AC to sit flush with the sill, you may need to remove the sash or install a temporary spacer. Safety is the top priority: ensure the window can bear the unit’s weight, and that the crank mechanism remains operable after installation. Measure three critical dimensions: total window width, the sash thickness when closed, and the depth from the interior face to the exterior edge of the sill. Compare these measurements to the AC’s exterior height and width with brackets attached. If you’re unsure, consult the unit’s installation guide and consider a professional assessment. This planning stage helps prevent order errors and ensures you pick a model that won’t overhang or bind the crank. The goal is a secure fit that preserves insulation and minimizes air transfer around the unit.
Sizing the unit for crank window installations
Proper sizing is essential for efficiency and comfort. An undersized unit will struggle to cool the space, while an oversized unit can trap heat and cause excessive cycling, reducing humidity control. Use the square footage of the room and local climate to approximate BTU needs, then verify with the manufacturer’s recommendations for crank-window installations. If your window depth is limited, choose a slim-profile model designed for crank-style openings and lighter weight. Remember that motor size, compressor efficiency, and fan speed influence cooling performance as much as the window’s fit. The Air Conditioner Service approach emphasizes selecting a unit that balances cooling capacity with weight and mounting hardware that distribute load evenly. If your window frame shows signs of weakness, a lighter unit or a professional reinforcement kit may be necessary. Finally, ensure that the unit’s exhaust direction and venting path align with exterior conditions to prevent re-entrainment of warm air.
Preparing the crank window opening: measurements, clearance, and safety checks
Preparation is the foundation of a successful installation. Start by clearing the area around the crank window and removing any decorative trim that might interfere with a tight seal. Use a tape measure to verify three dimensional clearance: width, height, and depth of the window opening. Check for any protrusions inside the sill that could encroach on the AC’s vent or cord routing. Inspect the exterior siding and wall surface around the window for potential water intrusion points and plan weatherproofing accordingly. Gather essential safety gear: gloves, safety glasses, and a partner to help lift the unit. Having a second person reduces the risk of injury and helps align the unit during mounting. As you prepare, sketch a simple plan showing how the AC will sit in the opening, where brackets will attach, and how the exhaust will vent to the outside. This stage minimizes surprises and ensures a smoother installation process.
Mounting options, brackets, and securing the unit
Crank-window installations often require external brackets to anchor the AC and prevent movement. Decide whether to mount on the interior sill with side brackets, or on the exterior using a screw-fastened bracket system. The key is to support the weight and keep the unit level to prevent leaks and poor drainage. If your window sash allows, you can use a reinforced mount kit designed for crank windows. Always follow the manufacturer’s instructions for bracket placement, screw length, and fastener type. After attaching brackets, carefully lift the AC into the opening, position it so the unit sits level, and secure the brackets. Ensure cords can be routed safely without pinching, and confirm that the exterior exhaust leads directly out of the window with a gap-free seal. As you fasten, periodically check for level and stability. A well-secured unit reduces vibration, noise, and the chance of air leaks.
Weather sealing, insulation, and draft prevention
Weather sealing is critical when using a crank window. Use expandable foam or weather-stripping to seal around the exterior and interior edges where the unit meets the window frame. Foam provides a solid barrier against drafts, insects, and moisture, while weather-stripping offers a flexible seal that compensates for minor gaps. Pay particular attention to the gap behind the unit where warm air can seep back into the room. If you have a sill that is uneven, install shims to create a flat, level surface for the AC to rest on. For added insulation, consider sealing the crack along the bottom sash with a removable foam strip that won’t damage the window when you reopen it. Finally, seal around the vent opening to avoid backdrafts and ensure efficient exhaust. A well-sealed installation saves energy, reduces cooling costs, and improves comfort without relying on the unit’s fan speed alone.
Common mistakes to avoid and troubleshooting pointers
Even experienced DIYers encounter hiccups with crank-window setups. Avoid cranking the sash against a heavy unit or forcing brackets into cramped positions, which can damage the window or the air conditioner. Never run cords across the sill or through narrow gaps where they could become pinched or damaged. Don’t vent the exhaust into an enclosed space; ensure a clear path to the outside to prevent heat buildup. If you notice gaps after installation, recheck the seal and adjust as needed. If the unit vibrates excessively, verify that the sash is fully supported and that brackets are properly anchored. For persistent leaks, consider re-sealing with a higher-grade foam or adding an exterior trim kit to channel airflow away from the interior. Address any unusual noises or unusual smells by powering down and inspecting bracket screws, seals, and venting path. This proactive approach helps prevent energy waste and prolongs the unit’s life.
After-installation care: maintenance and safety checks
With the unit installed, establish a simple routine to maintain safety and efficiency. Periodically inspect the brackets and seals for wear and tear, especially after temperature swings or strong winds. Clean the exhaust vent to prevent dust buildup that can impede airflow, and check the interior sill for moisture that might indicate a leak. Test the unit’s cooling performance and listen for unusual noises that could signal loose components. Keep the area around the window clear of obstructions to maintain unobstructed air flow. Finally, schedule regular filter changes and annual professional inspections as part of a broader maintenance plan. A well-maintained crank-window AC not only cools more effectively but also lasts longer and operates more quietly.
Tools & Materials
- Crank-window air conditioner unit (proper size)(Choose a unit compatible with your window width, sash depth, and weight rating.)
- Measuring tape(Measure width at multiple heights, and depth from interior face to exterior sill.)
- Level(Ensure the unit sits level to prevent drainage issues and rattling.)
- Screwdriver set (Phillips and flat-head)(Use for brackets and trim modifications.)
- Drill with appropriate bits(For mounting brackets and securing hardware.)
- Foam weather seal or expandable foam(Seal around all gaps to prevent drafts and moisture intrusion.)
- Weather-stripping tape(Optional memory to fill minor gaps and improve insulation.)
- Safety gear (gloves, safety glasses)(Protect hands and eyes when lifting and cutting.)
- Pry bar or putty knife(Useful for trimming and seal removal if needed.)
- Exterior trim kit (optional)(Helps channel exhaust and improve sealing.)
- Assistant or helper(Crucial for lifting and aligning the unit safely.)

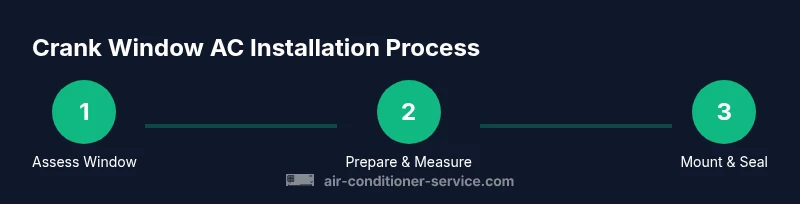

Steps
Estimated time: 60-120 minutes
- 1
Prepare area and gather safety gear
Clear the space around the crank window, remove trim if needed, and assemble all tools. Put on gloves and safety glasses. Having a second person ready reduces the risk of injury when lifting the weighty unit.
Tip: Have a friend hold the unit while you inspect the window frame for rot or damage. - 2
Measure the opening and choose a compatible unit
Measure width, height, and depth of the opening at multiple points. Compare with the unit’s dimensions including brackets. If your window is unusually narrow or deep, adjust by selecting a slim-profile model or a reinforced mounting kit.
Tip: Don’t rely on a single measurement; cross-check at three heights. - 3
Remove sash or prepare the window frame
If the sash interferes with mounting, carefully remove it or clear the interior opening to fit the unit. Clean debris and inspect the sill for damage. Do not force a fit—modifications should align with the manufacturer’s guidelines.
Tip: Take photos of the sash position before removal for reference. - 4
Position and secure mounting brackets
Attach brackets to the window frame or sill according to the unit’s instructions. Use a level to ensure the brackets are aligned, then tighten screws firmly. The goal is a stable base that prevents movement during operation.
Tip: Double-check alignment before final tightening to avoid crooked installation. - 5
Fit the unit into the opening and level it
Gently lift the AC into the opening, slide it into place, and check for level across the top and bottom. Secure brackets, ensuring even load distribution. Route the power cord safely and avoid pinching cords.
Tip: If the unit doesn’t sit level, adjust shims under the unit until level. - 6
Seal gaps and vent correctly
Apply foam or weather-stripping around the exterior and interior edges to seal. Confirm the exhaust vent has a clear path outside and is not blocked by trim. This step improves efficiency and prevents moisture intrusion.
Tip: Use removable foam in the interior gap so you can reopen the window later without damage. - 7
Test operation and safety checks
Plug in the unit, turn it on, and inspect for vibrations, leaks, and airflow. Check that the sash still moves freely if you need to adjust. If you notice unusual noises or heat, power down and recheck mounting.
Tip: Run a quick leak test with a visible sealant strip at the edges.
Common Questions
Can I install any air conditioner in a crank window?
Not all AC units fit crank windows. Check sash width, depth, and weight capacity, and use a mounting kit designed for crank windows. If in doubt, consult the manufacturer’s guidelines or a professional.
Not every unit fits crank windows. Check the sash width, depth, and weight capacity, and use a crank-specific mounting kit. If unsure, seek professional help.
Do crank window installations seal as well as standard installations?
Crank windows can be sealed effectively with proper weather-stripping and foam around the perimeter. Ensure an airtight fit to prevent drafts and moisture intrusion.
With proper weather-stripping and foam, crank window installations can seal well and prevent drafts.
Is it safe to vent the AC exhaust through a crank window into the room?
Exhaust should vent directly outside. Do not vent into the room, as it can introduce heat and humidity back into living spaces. Ensure a clear, unobstructed exterior path.
Vent directly outside and avoid venting into the room to prevent heat buildup.
Can I install without removing the sash?
In many cases, you’ll need to remove or modify the sash to create a stable, level opening. Follow the unit’s installation instructions and avoid forcing a fit.
Often you must remove or modify the sash to fit properly. Follow instructions and don’t force a fit.
What electrical considerations are there?
Ensure a dedicated outlet and avoid using extension cords. Check electrical load and use an appropriate power source per the unit’s requirements.
Use a dedicated outlet as recommended and avoid extension cords.
How can I improve efficiency after installation?
Keep seals tight, maintain clean filters, and ensure proper venting. Regular maintenance improves cooling efficiency and reduces energy use.
Keep seals tight, clean the filter, and ensure good venting for better efficiency.
Watch Video
The Essentials
- Verify window compatibility before purchasing a unit
- Securely mount brackets to support weight and minimize movement
- Seal all gaps to prevent drafts and moisture
- Test ventilation and electrical connections after installation
- Maintain the unit regularly for efficiency and safety
