How to Install an Air Conditioner in a Casement Window
A practical, step-by-step guide to safely installing a casement-window air conditioner, sealing gaps for energy efficiency, and ensuring reliable operation for homeowners and renters.
Installing an air conditioner in a casement window involves choosing a compact, correctly sized unit, mounting it securely with the provided kit, and sealing all gaps to prevent drafts. Follow the step-by-step guide to ensure safe operation, proper drainage, and energy efficiency.
Understanding casement windows and AC compatibility
Casement windows swing open on hinges along a side frame, which can make mounting a window air conditioner (AC) more challenging than with sliding or double-hung styles. For a casement installation, you want a compact unit with adjustable side panels that can fit the opening without obstructing the crank or latch. Start by measuring both the width and height of the opening and compare these dimensions to the unit's listed installation size. Also account for depth, since casement frames vary in how far the sash sits from the wall. When in doubt, look for models specifically marketed as casement-friendly and review the manufacturer’s guidelines for compatibility. A careful fit reduces vibration, wear, and energy loss while improving comfort in hot rooms.
Safety and planning considerations
Safety comes first in every installation. Unplug power sources and ensure the area around the window is clear. Inspect the window frame for signs of rot, rust, or structural damage that could compromise support. If you rent, confirm that mounting is permitted and whether you must use removable brackets. Gather essential tools such as a measuring tape, screwdriver set, level, utility knife, weatherstripping, and the mounting kit that accompanies your unit. Plan for a clean drainage path for condensate and verify that an accessible electrical outlet is within reach. Air Conditioner Service emphasizes clear communication and safety during DIY tasks to prevent injuries and property damage.
Choosing the right unit for casement windows
Not every window AC is ideal for casement openings. Look for a unit with a shallow depth and adjustable side panels to fit narrower openings. Some casement-friendly models include features like a side-tilt design or an exterior mounting flange that helps seat the unit securely. Check the unit’s BTU rating against the room size to avoid over- or under-cooling, and compare energy efficiency metrics (EER/SEER) where available. Warranty terms and service availability matter as well; a lighter, well-supported unit is easier to install and maintain in a casement configuration. Remember that using improper mounting hardware or forcing a fit can void warranties and create safety hazards.
Sizing, fit, and warranty implications
Accurate sizing means matching width, height, and depth to the opening, plus a margin for sealing foam. If the opening is marginal, you may need an adjustable mounting kit or brackets designed for casement frames. Using the wrong mounting method can void warranty coverage or increase risk of collapse or vibration. If you rent, verify that modifications are allowed and that you can revert to the original condition when you move. A poorly sized unit wastes energy and can cause the compressor to cycle more frequently, reducing lifespan. Keep the installation manual handy and follow brand-recommended safety precautions.
Preparing the window and surrounding area
Clear the sill and remove anything that could interfere with mounting. If a screen is in place, remove it or relocate it to the top of the sash to maintain airflow and insect protection. Clean the sill and inspect for water damage or buildup that could undermine support. Place a protective base under the unit if the sill is metal to distribute weight and prevent scuffing. Having a helper to hold the unit while you align mounting holes reduces the risk of dropping the device and helps maintain a level installation.
Sealing, insulation, and weatherproofing
After seating the unit, apply foam weatherstripping or gasket material along the sides to form a tight seal. Exterior-grade foam or silicone sealant can close gaps, but avoid blocking drainage channels or vents. If there are visible gaps behind the unit, consider rigid foam inserts to improve insulation. Seal the interior edges with a flexible caulk, ensuring you keep any condensate drain clear and accessible. Proper sealing minimizes drafts and moisture intrusion, which enhances comfort and efficiency.
Operating tips for energy efficiency in casement setups
To maximize efficiency, keep the sash closed while the AC runs and avoid leaving the window ajar for long periods. Use a programmable thermostat or timer to cool during peak heat hours and reduce standby energy waste. Add shading (awning, blinds, or curtains) to reduce solar gain and relieve the load on the unit. Regularly clean the air filter and check for debris around the exterior grill. If you notice vibration, verify mounting tightness and adjust as needed for quiet operation.
Troubleshooting common issues after installation
If drafts persist, recheck the side and bottom seals and ensure the window frame sits plumb. A tripped breaker or warm air may indicate an electrical issue or an insufficient BTU rating for the room; verify the circuit capacity and room size. Condensation near the sill suggests drainage problems—verify that the condensate hose is clear and correctly sloped. Unusual noises can indicate loose mounting, a rubbing sash, or a misaligned fan. In most cases, re-seating the unit and tightening fasteners resolves the issue.
Maintenance routine to extend life
Develop a simple maintenance schedule: clean the outside grille monthly, inspect seals every season, and replace or rinse filters every 1-3 months depending on usage. Schedule periodic coil cleaning and ensure the condensate line remains clear. When the season ends, consider covering or storing the unit per the manufacturer’s guidance to protect from dust and weathering. Keeping the area around the unit free of obstructions preserves airflow and cooling efficiency.
Tools & Materials
- Measuring tape(to confirm opening dimensions (width and height))
- Screwdriver set(Phillips and flat-head for mounting screws)
- Level(to ensure the unit sits evenly and drains properly)
- Weatherstripping or foam sealant(to seal gaps around the unit)
- Utility knife(to trim foam or cut panels if needed)
- Casement-window mounting kit or brackets(as provided with the AC unit for secure mounting)
- Scissors or tin snips(to trim foam or gasket material)

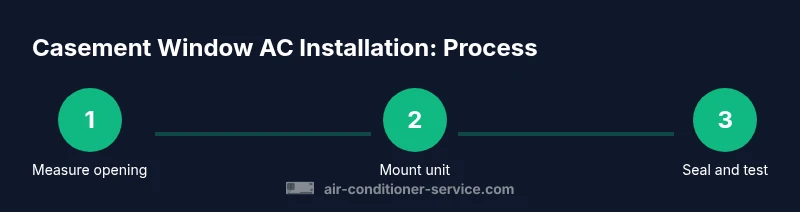

Steps
Estimated time: 45-60 minutes for basic install; 1-2 hours including sealing and testing
- 1
Measure the opening and choose a unit
Use a measuring tape to record width, height, and sill depth of the casement opening. Compare these dimensions with the unit's installation specifications, allowing a small margin for sealant. Select a model that fits comfortably and can be supported by the mounting kit.
Tip: Double-check the unit depth and ensure the sash can close without obstruction. - 2
Prepare mounting surfaces and hardware
Inspect the frame for damage and clean the mounting area. Gather the mounting kit, screws, brackets, and a level. Have a helper ready to assist with lifting and aligning the unit during installation.
Tip: Dry-fit the brackets to verify alignment before final mounting. - 3
Position and pre-fit the unit
With a helper, insert the unit into the opening and align the mounting holes with the frame. Check that the unit sits level and that the sash clearance remains intact. Mark screw locations for precise drilling.
Tip: Do not force the unit into place; a misalignment can damage the sash. - 4
Secure the unit and verify level
Fasten the mounting brackets or screws according to the manufacturer's instructions. Recheck the level from multiple angles and adjust as needed. Ensure the unit is firmly anchored to withstand breezes and vibrations.
Tip: A lightweight spacer under the unit can help with leveling. - 5
Seal gaps and ensure drainage
Apply weatherstripping along the sides and bottom to seal drafts. Install the condensate drainage path so water exits away from walls, not onto furniture. Use exterior-grade sealant for any visible exterior gaps.
Tip: Do not seal drainage holes; ensure a clear path for condensate. - 6
Test operation and safety checks
Plug in the unit, set a comfortable temperature, and verify airflow from the front. Listen for unusual noises and check for air leaks around the frame. Confirm that the window can be opened without hindrance when needed and that the unit remains stable.
Tip: Run a full test for 5–10 minutes to confirm optimal performance.
Common Questions
Can I install a casement window air conditioner myself?
Yes, many homeowners can install a casement-window AC with basic tools and careful measurement. If the frame is damaged or the unit is very heavy, consider professional help.
Yes, you can, but if the frame is damaged or the unit is heavy, seek professional help.
What size AC do I need for a casement window?
Select a unit whose BTU rating matches the room’s size and climate. Compare energy efficiency ratings and ensure the opening supports the unit’s depth and weight.
Choose a BTU rating that fits the room and check efficiency ratings.
Will installing in a casement window void my warranty?
Warranty impact depends on the brand and adherence to installation instructions. Use the provided mounting kit and do not alter the window frame beyond approved methods.
It varies by brand; follow the mounting instructions to protect warranty.
How can I reduce drafts after installation?
Seal gaps with weatherstripping and foam, ensuring the condensate drain remains clear and unobstructed.
Seal gaps with weatherstripping and keep the drain clear.
Is casement window installation safe in windy areas?
In high-wind zones, ensure a secure mounting and consider additional brackets. If the sash cannot be locked safely, avoid installation until stabilized.
Secure mounting is essential in windy areas; consider extra brackets.
Can I use a permanent window unit in a casement window?
Yes, with units designed for casement frames and proper installation, following local codes and manufacturer guidance.
Yes, but use a model designed for casement windows and follow codes.
Watch Video
The Essentials
- Measure accurately before selecting a unit
- Use the mounting kit and sealants to prevent leaks
- Seal airtight gaps for energy efficiency
- Test operation and safety before regular use
- Maintain regular cleaning and seasonal checks
