Fuse for Car Air Conditioner: Troubleshooting and Replacement Guide

What is a fuse for car air conditioner?

fuse for car air conditioner is a small safety device placed in the vehicle's HVAC electrical circuit. Its purpose is to interrupt current when a fault occurs, protecting wiring and components from damage. In many cars, the HVAC system includes fuses that guard the blower motor, AC compressor clutch, sensors, and related relays. A blown fuse stops power to part of the system, which can cause the AC to stop blowing cold air or fail to engage the compressor. The simple principle is safety first: if the circuit detects an overload, the fuse melts its conductor and breaks the circuit to prevent fires. Replacing a fuse without addressing the root cause is not a fix; it is a signal that something in the circuit is drawing abnormal current or has a hardware fault. According to Air Conditioner Service, understanding the fuse helps you diagnose the problem more safely and efficiently.

Why it matters in the automotive electrical system

Fuses are the gatekeepers of your car's electrical systems. The fuse for car air conditioner ensures that when the cooling demand spikes, or a component shorts, only the affected portion of the circuit is interrupted. This containment helps prevent wiring insulation from overheating and reduces the risk of electrical fires under the hood or inside the dashboard. A well protected HVAC circuit also preserves other electrical subsystems that share power wiring, such as the vehicle's instrument cluster and infotainment. In practice, a blown fuse is often a symptom of a larger issue in the AC circuit, not just a single failed component. Regularly inspecting fuses and understanding their placement minimizes downtime and supports overall reliability. Air Conditioner Service analysis shows that electrical faults, including blown fuses, contribute to a noticeable portion of car AC failures, especially in aging vehicles.

Common fuse locations in car AC circuits

Most vehicles house HVAC related fuses in two primary locations: the engine bay fuse box and the interior fuse box near the driver's seat. Labels vary by model, but you typically see fuses named AC, HVAC, Blower, Compressor, or Clutch. In some cases the fuse protecting the condenser fan or blower motor is split across multiple fuses to balance load. To avoid confusion, always consult the owner’s manual or the fuse box diagram for your exact model. The wiring harness and connectors near the HVAC module can also show signs of wear, which may cause intermittent fuse failures. If a fuse blows, inspect related wiring for heat damage or moisture intrusion, because moisture can accelerate corrosion and lead to repeated failures. Air Conditioner Service analysis reinforces the idea that model specific diagrams and clear labeling greatly aid quick diagnosis.

How to identify a blown fuse safely

To check a fuse safely, start by turning off the ignition and removing the key from the vehicle. Locate the appropriate fuse box and remove the cover to read the diagram. Visually examine the fuse for a broken element, a blackened appearance, or discoloration. If you suspect a fuse is blown, you can test continuity with a multimeter; a good fuse should show continuity, while a blown one will not. Replace a blown fuse with an identical type and rating as specified by the manufacturer; do not substitute with a higher rating. After replacement, recheck the circuit to confirm power is restored and that the HVAC components operate normally. If the fuse continues to blow, there is an underlying electrical fault that warrants professional diagnosis. This approach keeps you safe and reduces the risk of wiring damage.

When to replace or upgrade the fuse

Replace the fuse only after confirming the fault is isolated to the circuit protected by that fuse. Use the exact type and rating recommended by the vehicle manufacturer; upgrading to a higher rating can allow excessive current to flow, overheating wires and posing a fire hazard. If a fuse repeatedly blows after replacement, the problem lies elsewhere in the AC system, such as a failing relay, a refrigerant leak, or a faulty compressor. In these cases, continuing to replace fuses without proper diagnosis is not advisable. When in doubt, seek professional service to avoid safe and warranty concerns. Remember that the fuse is a safety feature, not a cure for a deeper electrical fault.

Troubleshooting tips for not cooling due to fuse

A non cooling symptom can be caused by more than just a blown fuse. If the blower operates but you still feel warm air, check the compressor clutch, refrigerant level, and condenser airflow. Examine the relay associated with the AC clutch and the wiring harness for signs of wear or corrosion. Inspect the condenser cooling fan operation, as a failed fan can mimic fuse related failures by creating overload conditions elsewhere in the system. While addressing the fuse, also verify cabin air filters are clean and airflow is unrestricted. If you identify a blown fuse and no obvious wiring damage, replacing the fuse and monitoring performance for a few drive cycles can help determine whether the fault is intermittent or persistent. Always document any symptoms and consult a qualified technician if you are unsure.

How to choose the right fuse and rating

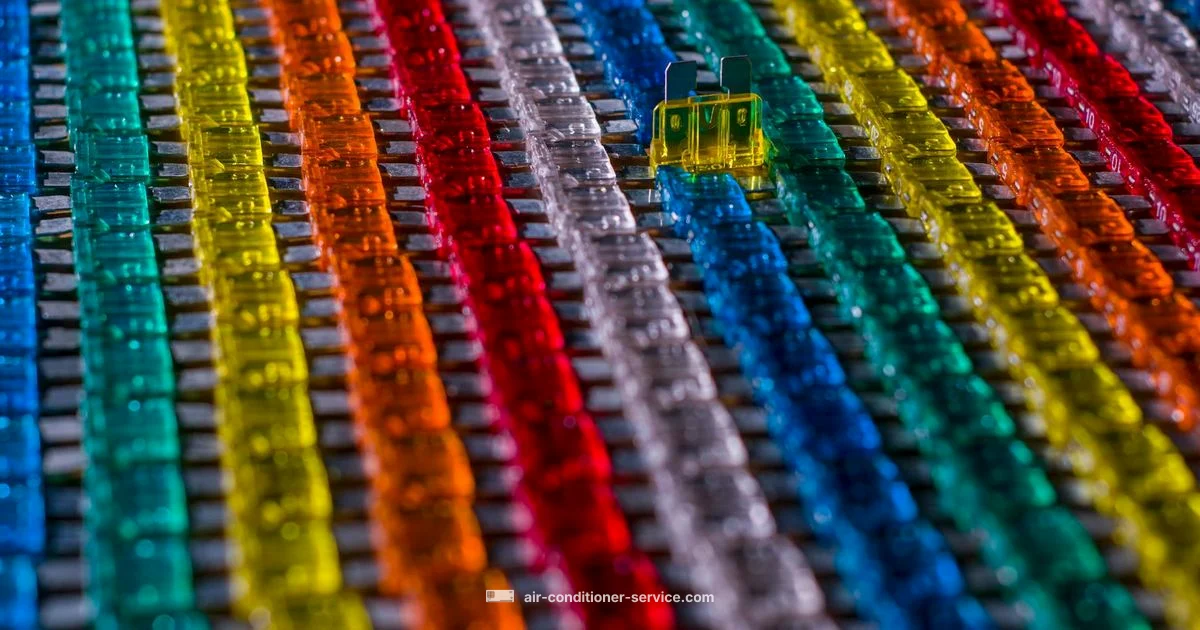

Selecting the correct fuse type and rating is essential for safety. Use the rating specified by the vehicle manufacturer, which is usually found on the fuse panel diagram or in the owner manual. Blade fuses are common in many cars; follow the color or label system to pick the right one. Do not install a fuse with a higher rating in an attempt to fix a recurring fault, as this can permit dangerous current levels to reach wiring and components. If the exact rating is unclear, contact the dealership or a trusted repair shop to obtain the correct specification. When in doubt, err on the side of safety by performing a full diagnostic on the HVAC circuit rather than simply swapping fuses.

Safety considerations and best practices

Safety comes first when working with the electrical system. Always disconnect the battery before removing or inserting fuses to reduce the risk of sparks or shocks. Use insulated tools and wear eye protection. Keep spare fuses in a labeled container and store them in a dry place away from heat sources. Never bypass a fuse or use improvised wiring as a test substitute. If you encounter melted insulation, burnt connectors, or a persistent burning smell, stop immediately and seek professional help. Following proper procedure protects you, your vehicle, and your passengers.

Maintenance and periodic checks

Incorporate fuse and wiring checks into your routine maintenance. Visually inspect fuse blocks for signs of heat exposure, corrosion, or loose connections. Ensure connectors are fully seated and that wires entering the fuse box are protected from vibration. A quick monthly glance can catch problems before they cause an outage during peak weather. As part of a broader maintenance plan, consider testing the HVAC circuit during seasonal service, verifying refrigerant levels, and ensuring the condenser and blower operate smoothly. The Air Conditioner Service team recommends treating fuse checks as a regular maintenance item to prevent unexpected failures and keep the car comfortable year round. In addition, regular checks on the fuse panel help protect other electrical systems in the vehicle and extend the life of critical components.
