Window AC Installation: A Practical Step-by-Step Guide
Learn to install a window ac safely and efficiently with a practical, step-by-step guide covering measurement, mounting, sealing, electrical checks, and maintenance for homeowners.
This guide helps homeowners achieve a safe, efficient window ac installation, with clear measurements, proper mounting, electrical checks, and sealing. You’ll learn the exact steps you can perform yourself, plus signs you should halt and call a pro for electrical or structural tasks. By following these steps, you’ll improve comfort and energy savings.
Why window ac installation matters
Proper window ac installation is essential for comfort, efficiency, and safety in your home. With correct setup, the unit cools effectively, seals against drafts, and minimizes vibration. The phrase window ac installation captures the whole process from measuring the window to securing the cabinet. According to Air Conditioner Service, a well-executed installation reduces energy waste, prevents leaks, and extends the life of the unit. Before you begin, note that not all windows are alike; factors such as sill depth, frame material, and the presence of a removable sash affect how you approach mounting. The goal is a snug fit, a level installation, and sealed gaps that prevent warm air from entering or cooled air from escaping. This section outlines the why behind the task so you understand what you're aiming for and why it matters for daily comfort and long-term savings.
Tools and materials you’ll need
Before you lift a finger, assemble the tools and materials that make window ac installation straightforward and safe. A basic kit includes a measuring tape, a level, a screwdriver set, a drill with appropriate bits, screws or mounting brackets compatible with your unit, and weather-seal or foam insulation. You may also need a putty knife, a utility knife, and possibly a foam backer rod for larger gaps. If your unit has a non-standard form factor or you must secure it to the window frame, have shims and a protractor handy to ensure fine alignment. Keep a flashlight and a notepad to document measurements and step notes. Optional but helpful items: a friend or helper to lift the unit and a cordless vacuum to clean the sill before installation.
Measuring the window and selecting the right unit
Start by measuring the window opening and the sill depth to ensure your chosen window AC will fit securely. Record width, height, and depth where the unit sits, and verify that the window frame can support the weight. Use a level to confirm the window is plumb and note any obstructions, such as drapery rods or blinds. As you select a unit, consider the BTU capacity relative to room size, the unit’s exhaust orientation, and whether the window’s orientation favors an inside-out venting configuration. Do not assume a perfect fit; compare the unit’s mounting kit with the window’s dimensions and the accessory brackets that come with the product. If you’re unsure about fit, consult the product’s white papers or manufacturer guidelines.
Mounting and securing the unit
Mounting a window AC begins with preparing the window and installing any brackets or side panels per the manufacturer’s instructions. Extend side wings to fill the gap between the unit and the window frame, then place the unit in the window and slide the weight onto the support sill. Use a level to check horizontal alignment, and insert screws or fasteners through the mounting brackets to lock the unit in place. Be mindful of cords and ensure the unit remains accessible for maintenance. If your model includes an energy-efficient sash, follow the kit’s alignment cues to avoid binding. Remember, a properly mounted unit reduces vibration, improves sealing, and minimizes air leaks from the room.
Electrical safety and power considerations
Powering a window AC safely requires attention to the electrical circuit. Verify you have a dedicated outlet of the correct voltage (typically 120V in many regions) and check that the outlet is grounded. If your installation requires a cord-and-plug setup, ensure the plug matches the outlet and that there is no extension cord in the circuit. For hard-wired units or if you notice signs of electrical strain (warm outlets, tripping breakers, or buzzing noises), stop and consult a licensed electrician. Do not run cords under rugs or through doorways where they can become damaged. Always unplug the unit before making any wiring adjustments or mounting changes, and follow the manufacturer’s safety instructions for starting, testing, and securing the electrical connection.
Sealing gaps, insulation, and airflow
After the unit is mounted, seal gaps around the window frame to prevent warm air from entering and cooled air from escaping. Use foam insulation or weather-stripping to seal the sides and top of the unit, taking care not to block the exhaust path. Ensure the vent is directed outdoors and that the interior sash can close securely without stressing the unit. Proper sealing improves efficiency and keeps insects from entering. Keep the interior and exterior surfaces clean to prevent dust buildup that can degrade performance over time.
Post-install checks and maintenance
Once installed, perform a quick test: turn the unit on, set a comfortable temperature, and listen for unusual noises or vibration. Check that the window seals are compact and not applying pressure on the AC housing. Periodically clean the filter, inspect the exhaust hose (if applicable), and re-seal any gaps as seasons change. Keep the area around the unit free of clutter and ensure the power cord remains accessible. Routine maintenance extends the life of the unit and sustains efficiency. The Air Conditioner Service team recommends inspecting seals yearly and reviewing installation guidelines to maintain performance.
Tools & Materials
- Measuring tape(At least 80 inches long for large windows)
- Level(To confirm horizontal alignment)
- Screwdriver set(Phillips and flat-head as needed)
- Drill with appropriate bits(For mounting brackets/fasteners)
- Screws or mounting brackets(Specify unit-specific hardware)
- Weather-stripping or foam insulation(Seal sides and top)
- Putty knife / utility knife(Trim insulation neatly)
- Helper (optional)(Lifts heavy units and steadies during mounting)

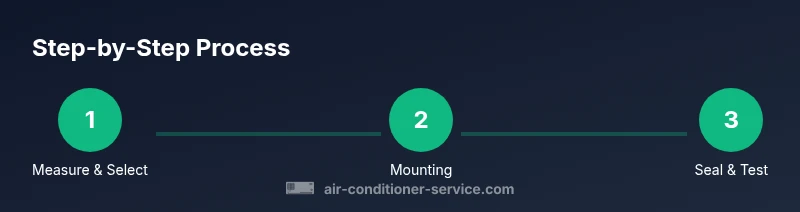

Steps
Estimated time: 45-90 minutes
- 1
Measure window and select the unit
Measure the window opening and sill depth, check the unit’s width and height, and compare to the mounting kit. Confirm there is a doorway or unobstructed area for venting, and verify the chosen unit can be supported by the sill. This ensures a secure base before you lift the appliance.
Tip: Double-check measurements with the manufacturer’s mounting template to avoid mismatch. - 2
Prep the window and sill
Open the window fully and clear debris from the sill. Remove any curtains or blinds that could interfere with mounting. If needed, apply a temporary spacer to keep the window stable during setup.
Tip: Have a helper hold the unit during initial placement to prevent drops or scratches. - 3
Attach mounting brackets or side panels
Secure brackets or side panels to the window frame per the product's instructions. Make sure the brackets are level and evenly spaced to distribute the unit’s weight.
Tip: Use a level during bracket installation to prevent tilt that could compromise seals. - 4
Place the unit in the window
With assistance, lift the unit and slide it into the brackets. Check that the exhaust faces outward and the unit sits firmly on the sill. Ensure cords are arranged safely away from the window edge.
Tip: Keep hands clear of the coil area to prevent damage. - 5
Secure and level the unit
Run screws through brackets into the window frame and tighten until snug. Recheck level and adjust as needed. Verify that the sash can close without binding and that the unit remains stable during gentle pressure.
Tip: Do not overtighten screws; you want a snug fit without warping the frame. - 6
Seal gaps and test operation
Apply foam insulation along the top and sides to seal gaps. Direct the vent outside and plug in to test cooling. Listen for unusual noises and check for air leaks around the edges.
Tip: Run the unit on a mid-range setting to verify airflow before final sealing.
Common Questions
Do I need a professional to install a window air conditioner?
For most basic window units, installation is a DIY task. However, if you encounter electrical wiring work, hard-wiring, or structural concerns, consult a licensed electrician or contractor.
Most window ACs can be installed by homeowners, but always consult a pro if wiring or a window frame repair is needed.
How do I know my window can support a window AC?
Check the window sill depth, frame condition, and the weight rating of the unit’s mounting kit. If in doubt, test with a light load first and review the manufacturer guidelines.
Check sill depth, frame strength, and the mounting kit’s weight guidance before mounting.
Can a window AC be used in a bedroom?
Yes, many window units are suitable for bedrooms. Choose the right BTU for the room size and ensure quiet operation and proper sealing to minimize disruption.
Yes, you can use a window AC in a bedroom with the right size and sealing.
What safety precautions should I take during installation?
Unplug the unit before any work, wear eye protection, and keep cords away from the path of installation. If unsure about electrical connections, stop and call a professional.
Unplug the unit, wear protection, and avoid questionable electrical work; call a pro if unsure.
Why is sealing important after installation?
Sealing reduces air leaks, improves cooling efficiency, and prevents moisture or pests from entering. It’s a simple step that yields noticeable comfort and energy savings.
Sealing prevents leaks and boosts efficiency, giving you better comfort and savings.
Watch Video
The Essentials
- Measure accurately before purchase and mounting.
- Secure mounting brackets and level the unit for best performance.
- Seal gaps to maximize efficiency and reduce drafts.
- Follow safety guidance and call a pro for electrical concerns when needed.
