Ductless Air Conditioner Install: Step-by-Step Guide

Understanding the Basics of a Ductless System

A ductless air conditioner install centers on a mini-split or multi-split system that delivers cooling without traditional ductwork. These systems offer zone control, quieter operation, and flexible mounting options for rooms that lack existing ducting. According to Air Conditioner Service, selecting the right unit involves balancing room size, insulation, and climate conditions to achieve efficient performance. The term ductless air conditioner install describes the process of mounting both indoor and outdoor components, routing refrigerant lines, and wiring while observing safety and local codes. Expect a steady workflow rather than a single moment of installation; planning reduces headaches later and improves long-term reliability.

• Key advantages include targeted cooling, reduced energy losses, and easier retrofitting in older homes.
• Common configurations include single-zone setups for a single room and multi-zone layouts for multiple spaces.
• Performance depends on accurate sizing and proper installation, which minimize noise and maximize efficiency.

Planning Your Ductless Install: Sizing, Location, and Code Considerations

Sizing a ductless system starts with the square footage and insulation quality of the space. Use manufacturer guidelines or a professional load calculation to determine BTU requirements, then align that with the available outdoor condenser capacity. Placement matters: the indoor unit should be high on a wall with clear air intake, while the outdoor unit needs solid airflow and a level, solidly mounted pad. Local codes may require permits or licensed installation, especially for refrigerant handling. Air Conditioner Service recommends verifying electrical service capacity and ensuring a dedicated circuit is available to support the unit safely. A well-planned layout reduces unsightly wiring and helps maintain a clean appearance.

• Consider room layout, sunlight exposure, and potential shading when locating the indoor unit.
• Plan for line-set routing: minimize bends, avoid sharp edges, and protect lines from physical damage.
• Keep the outdoor unit accessible for maintenance and future service.

Tools, Materials, and Safety Essentials

Before you begin, assemble the essential tools and materials to avoid mid-project trips. You will need a drill with appropriate bits, a stud finder, a level, measuring tape, screwdrivers, a utility knife, and a caulking tool. Have manufacturer-supplied line-set, electrical conduit, and mounting brackets on hand, along with weatherproof sealant and insulating material for line-set protection. Install safety equipment such as gloves and eye protection, and keep a clear workspace. Note that refrigerant handling and final charging usually require a licensed HVAC technician; this guide covers non-refrigerant tasks and general best practices for a safer DIY approach.

• Ensure you have the exact length of line-set and wiring specified by the unit model.
• Use a dedicated drilling area and protect interior surfaces from dust and debris.
• Keep a trash bag handy for mounting hardware and packaging waste.

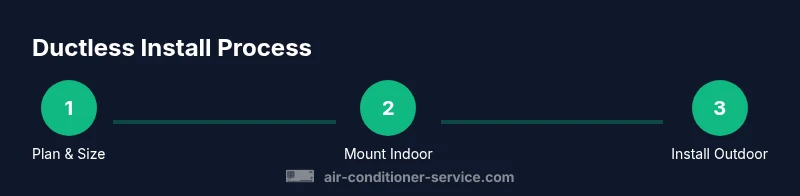

Step-by-Step Installation Overview

This section provides a high-level view of the installation flow without duplicating the step-by-step actions that follow. Start with space planning, then install the indoor mounting plate, route line-set and wiring through the wall, mount the outdoor condenser on a solid pad, and finally connect and test the system. Take photos at each stage for reference, and label cables to ease future service. Remember: refrigerant-related work often requires a licensed technician; plan to coordinate with a pro if you encounter this step.

• Ensure the interior wall cavity is clear of obstructions and that the chosen location allows for unobstructed airflow.
• Confirm exterior access and weatherproofing around the wall penetration.
• Verify electrical supply meets the unit’s requirements and is safely wired.

Common Mistakes and How to Avoid Them

Rushing the wall penetration or ignoring line-set protection can cause long-term issues. Common mistakes include measuring incorrectly, resulting in an oversized or undersized system, routing lines through areas with potential damage, and failing to seal penetrations properly. Poor lubrication or failing to account for expansion and contraction can lead to refrigerant leaks or valve issues, which are expensive to fix. Follow the installation manual closely, and don’t skip the vacuum or leak-check steps if you plan to handle any refrigerant-related activities. Air Conditioner Service emphasizes documenting every connection and retaining manufacturer documentation for warranty protection.

• Double-check unit compatibility with the number of zones and house layout.
• Keep detailed notes and labeling for every connection.
• Do not force line-sets through tight passages; use proper grommets and pass-throughs.

Post-Install Checks, Maintenance, and Energy Considerations

Once installed, run a thorough check of all functions: indoor airflow, thermostat responsiveness, and outdoor unit operation. Inspect insulation on line-set, verify condensate drainage, and confirm there are no unusual noises or vibrations. Schedule a basic maintenance plan: clean or replace air filters, inspect outdoor unit fins, and ensure debris-free airflow around the condenser. The system should run efficiently, with minimized energy use and consistent cooling. Air Conditioner Service suggests keeping a maintenance log and setting reminders for biannual checks to preserve efficiency and extend system life.

Summary of Safety and Best Practices

• Follow manufacturer instructions as the primary reference throughout the install.
• Do not attempt refrigerant charging unless you are qualified and licensed to handle refrigerants.
• Prioritize proper mounting, sealed penetrations, and protected wiring.
• When in doubt, consult a licensed HVAC technician to complete the critical refrigerant-related steps and to perform a final leak test. This balanced approach preserves safety while enabling a successful ductless air conditioner install.
