The Complete Guide to 15 000 BTU RV Air Conditioners
Comprehensive guide to the 15 000 BTU RV air conditioner, covering sizing, installation, efficiency, and maintenance for homeowners and RV enthusiasts.
The 15 000 btu air conditioner rv configuration is a popular choice for mid-sized RVs, delivering robust cooling in hot weather. According to Air Conditioner Service analysis (2026), this size best serves multi-room layouts when installed with proper venting, insulation, and roof mounting. This makes it a reliable option for travelers who want dependable comfort on demanding trips.
Understanding the 15 000 btu air conditioner rv
In the RV world, BTU is a measure of cooling capacity. A 15 000 btu air conditioner rv is designed to remove heat from a mid-sized interior, typically a living area plus sleeping quarters, during hot days. This size is a balance between cooling power and electrical load for most 30- to 45-foot RVs. When you see a label reading 15,000 BTU, think in terms of how many occupants, how well the RV is insulated, and how much shade the unit has. Poor insulation or large windows can reduce perceived performance, even with a high BTU rating. For most travelers, this size provides comfortable cooling without disproportionately straining the electrical system, especially when paired with a properly sized generator or shore power connection.
Key takeaway: BTU is only part of the story; insulation, ducting, and ventilation determine actual comfort in an RV.
RV sizing: matching the unit to your rig
A 15 000 btu air conditioner rv is most effective in mid-sized RVs with decent insulation and a practical floor plan. To size correctly, assess the interior volume, number of doors and windows, and any existing ductwork. If your RV tends to trap heat due to large single-pane windows or sun-facing exposure, you may need more than a baseline 15k BTU. Conversely, well-insulated trailers with shaded exterior walls can maintain comfortable temperatures with less cooling power. Always compare the unit’s runtime needs against your shore power or generator capacity to avoid overloading electrical circuits during peak heat.
Practical tip: Use a simple heat-load calculator to estimate required BTU for your exact space. This helps prevent oversizing or undersizing the unit.
Rooftop mounting and venting essentials
Most 15 000 btu air conditioner rv units are rooftop-mounted, which keeps living space clear and minimizes indoor clearance requirements. Before installation, confirm your roof’s fiberglass or metal integrity and ensure the existing opening matches the unit’s dimensions. Venting is critical: improper sealing around the exterior shroud can cause leaks and reduce cooling efficiency. Use the manufacturer-supplied gasket and sealant, and verify that the roof deck can support the unit’s weight in all driving conditions. A proper electrical disconnect is essential, and many RVs rely on 120-volt systems with dedicated circuits. If you travel off-grid, verify inverter or generator compatibility to maintain consistent cooling.
Checklist: roof opening match, correct gasket, secure mounting hardware, and compliant electrical supply.
Electrical requirements and safety for RV installs
Running a 15 000 btu air conditioner rv typically requires a stable 120-volt supply with sufficient amperage. Many RVs use a 15-amp or 30-amp service, and some setups may need a dedicated circuit breaker. High startup surge is common for AC compressors, so you should plan for brief current spikes and account for other electrical loads inside the vehicle. If you rely on shore power, confirm the campground’s supply rating and ensure the cord and adapters are rated for outdoor use. When installing, avoid overloading circuits by pairing with energy-saving habits, like pre-cooling before peak heat and using ceiling fans to assist air distribution. Safety checks should include proper grounding and the use of GFCI outlets where required.
Starter tips: check for corroded connections, verify fuse sizes, and avoid long extension cords that add resistance.
Installation steps and common mistakes
A typical installation workflow includes selecting a compatible rooftop opening, mounting the unit with supplied brackets, sealing the perimeter, routing wiring to a dedicated 120V circuit, and testing operation. Common mistakes include over-tightening fasteners, improper gasket sealing leading to leaks, and underestimating the electrical load on the circuit. Take care to align the condenser coil with the exterior airflow path to maximize cooling efficiency. If your RV uses ducting for more even distribution, ensure the ductwork is sealed to prevent loss of cooled air. After installation, perform a full function test on all modes and verify thermostat responsiveness.
Pro tip: record the start-up current draw with a clamp meter to verify your electrical system can sustain normal operation without tripping breakers.
Maintenance tips to extend life
Regular maintenance keeps a 15 000 btu air conditioner rv operating at peak efficiency. Clean or replace filters monthly during heavy use, inspect seals for wear, and check the condensate line for blockages to prevent water damage. Outdoor components should be kept clear of debris, with the condenser coils brushed gently to remove dirt and leaves. Seasonal shutdowns require more meticulous checks: verify that the cover fits securely to avoid wind damage and confirm battery or inverter readiness for start-up. For off-grid travelers, monitor battery voltage and generator run times to avoid draining essential systems.
Seasonal routine: filter change, coil cleaning, gasket inspection, and electrical connection check.
Common issues and quick fixes
If your RV cooling seems weak, start with a clean filter and unobstructed exterior vents. A high-pressure alarm or unusual noises can indicate a refrigerant issue or a failing compressor. Check for water leaks around the shroud or rooftop opening, which can indicate seal failures. A tripped breaker or a weak electrical supply may prevent the compressor from starting. If you hear buzzing noises, power down safely and call a professional. Regular maintenance and early diagnosis help minimize costly repairs and downtime during trips.
Fast check: Listen for unusual sounds, inspect seals, and verify temperature setpoints align with ambient conditions.

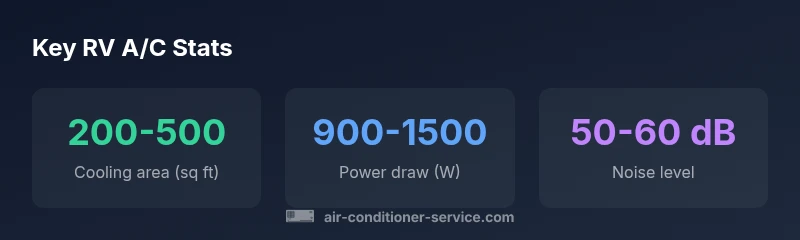

Comparative overview of common 15k BTU RV cooling options
| Model Type | Typical Capability | Cooling Area (approx) | Power Draw (running) | Notes |
|---|---|---|---|---|
| Rooftop 15k BTU | Mid-size RVs | 200-500 sq ft | 900-1200 watts | Requires roof mounting and proper sealing |
| Through-roof 15k BTU (hardwired) | Integrated into roof opening | 200-450 sq ft | 900-1200 watts | Difficult install, best with professional help |
| Portable 15k BTU (plug-in) | Single-room style RV space | 150-350 sq ft | 1000-1500 watts | Easier to move; less efficient for whole-RV cooling |
Common Questions
Is a 15,000 BTU RV air conditioner enough for my RV size?
For many mid-sized RVs, 15k BTU provides comfortable cooling in hot weather, assuming good insulation and proper venting. Larger or less insulated rigs may require more BTU. When in doubt, compare your space’s heat load to a recommended BTU calculator and consult an installer.
A 15k unit often fits mid-sized RVs, but insulation and layout matter. If your space heats up quickly, a calculator can guide you.
What installation considerations are critical for rooftop units?
Critical factors include matching the roof opening, ensuring a weather-tight seal, securing mounting brackets, and providing a dedicated electrical circuit. Proper venting and clearance around the unit prevent heat recirculation and noise issues.
Make sure the roof opening matches, seal well, and have a dedicated circuit for a rooftop unit.
Can I replace a home AC with an RV unit?
RV air conditioners are designed for different electrical and venting conditions than residential systems. A direct swap is uncommon; ensure compatibility with RV wiring, roof opening, and exterior venting. In many cases, a dedicated RV unit is the better choice.
Home units aren’t a simple swap for RV roofs; check wiring, vents, and roof fitment.
What are typical energy costs with a 15k BTU RV AC?
Energy costs vary with climate, usage, and efficiency. A 15k BTU unit typically draws more power during peak heat, so plan for higher generator or shore power usage in hot climates. Use energy-saving settings to minimize consumption.
Costs depend on how hot it is and how efficiently you run it; plan for higher power use in heat.
What maintenance should I perform regularly?
Regularly clean or replace filters, inspect seals for wear, and check condensate drainage. Clean the exterior coils and keep rooftop vents clear of debris. Schedule professional checkups before long trips.
Keep filters clean, seal intact, and check drainage and coils seasonally.
What warranty coverage applies to 15k BTU RV AC units?
Warranty coverage varies by brand and installation. Look for coverage that includes the compressor, condenser, and installation workmanship. Be sure to document the install and maintain regular service records.
Warranties differ; verify compressor and installation coverage and keep service records.
“A 15,000 BTU unit is a reliable mid-range choice for many RVs, but correct installation, venting, and electrical planning are essential to achieve the expected performance.”
The Essentials
- Choose 15 000 btu RV A/C for mid-sized rigs with solid insulation.
- Roof mounting requires proper sealing and a dedicated electrical circuit.
- Electrical load and generator needs should be planned before installation.
- Regular maintenance extends unit life and maintains efficiency.
- Match BTU to RV size, insulation, and climate for best comfort.
