How to Check Air Conditioner Tonnage: A Practical Guide
Learn how to determine your AC tonnage with data plates, room measurements, and load estimates. Practical steps for homeowners from Air Conditioner Service.
According to Air Conditioner Service, determining your AC tonnage helps match cooling capacity to space. By the end of this quick guide, you’ll know how to check your air conditioner tonnage and why it matters for efficiency. You’ll locate the model data plate, verify factory tonnage labels, measure room size, and compare with a simple sizing method. This approach avoids over- or under-sizing.
Understanding AC Tonnage and Why It Matters
AC tonnage is the cooling capacity of an air conditioner, expressed in tons. One ton equals 12,000 BTU per hour, a standard used to describe how much heat the system can remove from your space in an hour. This labeling helps homeowners compare units and select equipment that matches the size and heat load of a home. Correct sizing improves comfort, energy efficiency, and equipment longevity; an oversized unit may cool space quickly but leave you with high humidity and frequent short-cycling, while an undersized system struggles on hot days. The Air Conditioner Service team emphasizes that many comfort problems stem from improper sizing rather than a faulty thermostat or dirty filters. By understanding tonnage, you can navigate replacements, upgrades, and service decisions with greater confidence for year-round comfort and savings.
How AC tonnage is labeled on units
AC tonnage is shown on the outdoor unit’s data plate, a metal label tucked under the access panel or behind the service cover. It may appear as “Ton” with a numeric value, or as “Nominal Capacity” followed by BTU/h. Common residential units list capacities in tons (1 ton, 2 ton, 3 ton, etc.) or in BTU/h (e.g., 24,000 BTU/h for a 2-ton unit). Indoor components rarely claim tonnage; the decisive figure is the outdoor condenser’s rating. When you’re reading the plate, confirm the units: is the value clearly labeled as tonnage, or do you need to divide BTU/h by 12,000 to estimate tons? If the label is worn, compare the model number to the manufacturer’s data sheet or owner’s manual. Air Conditioner Service notes that relying on the data plate is the fastest, most reliable starting point for determining your current tonnage.
Common tonnage sizes and what they mean for you
Most homes in modern suburbs use units in the 1–5 ton range, though actual needs vary with climate, home design, and occupancy. A compact living space often pairs with a smaller tonnage, while larger, sun-exposed living areas or multiple rooms served by a single system may require more cooling capacity. The key takeaway is that tonnage reflects the maximum cooling the system can deliver per hour, not the amount of space it will necessarily cool comfortably in every condition. Air Conditioner Service emphasizes that a mismatch between space and tonnage is a common source of energy waste and uncomfortable humidity. Don’t assume a bigger unit will fix poor comfort; in some cases, oversizing can be just as problematic as undersizing because it changes humidity control and cycling patterns.
Quick methods to estimate tonnage: data plate, room size, and more
Start with the data plate on the outdoor unit; that is your most reliable starting point. If the label shows BTU/h, convert by dividing by 12,000 (for quick mental math, think in thousands of BTU). If a tag lists Ton, use the number directly. Next, consider the space: measure the main living area’s square footage and adjust for shading, ceiling height, and insulation. A quick home estimate can guide decisions, but a formal load calculation is best for new installs or major changes. Air Conditioner Service recommends using data from the label first, then validating it against room size and climate considerations.
Measure room dimensions to estimate cooling needs
To estimate cooling needs, start by measuring the length and width of the space served by the unit. Multiply to obtain floor area, then note ceiling height and the number of large windows or sun-exposed surfaces. If you have multiple rooms on the same system, calculate combined area and consider how doorways might affect airflow. Record any heat-producing equipment, such as computers or kitchen appliances, that will add to the load. Use these measurements to compare against typical capacity expectations and to check whether your current tonnage aligns with the physical space.
Assess insulation, shading, and air leakage effects
Insulation levels in walls and attics, along with window quality and shading, can dramatically alter cooling needs. Poor insulation or air leaks will increase the effective heat load, causing the system to run longer and possibly larger than the main area would indicate. Check attic and wall insulation, seal obvious gaps around doors and windows, and assess shade from trees or overhangs. If your space has high heat gain due to sun exposure, you may require more tonnage than the floor area alone would indicate. Air Conditioner Service reminds homeowners to account for these variables when validating data plate estimates.
Read data plates and model numbers: what to look for
Data plates usually list the unit’s nominal capacity in tons or BTU/h. Look for phrases like “Cooling Capacity,” “Nominal Capacity,” or simply “Ton.” Compare the number to the house size you measured and the climate. If the unit’s model number is available, you can cross-check it against the manufacturer’s spec sheet for exact ratings and any regional variations. Some systems may show a range (e.g., 2–3 ton) depending on operating conditions; use the lower end for sizing if you’re unsure.
When to rely on a professional load calculation
Whenever you’re unsure about whether your system is properly sized, a professional load calculation is worth it. A Manual J calculation considers floor area, insulation values, window orientation, occupancy, and equipment used in the home. It provides a precise tonnage recommendation and helps avoid costly mistakes during replacement or renovation. If you’re installing a new system or replacing an old one, scheduling a local HVAC contractor visit is a wise investment.
Practical tips for on-site verification and safety
Before you begin, switch off the outdoor and indoor power to the AC to avoid shock hazards. Use a flashlight and a camera to document the data plate and any labeling. If you need to access the data plate behind a panel, use a safe ladder and avoid forcing panels. Have a helper nearby in case you need to move heavy components. These steps help you collect accurate data while staying safe.
Common mistakes homeowners make and how to avoid them
Common mistakes include assuming a larger space automatically requires a bigger unit, ignoring insulation quality, and trusting anecdotal configurations rather than data plates. Another frequent error is failing to account for climate and occupancy in tonnage calculations. Finally, attempting to oversize or undersize without professional confirmation often leads to energy waste and comfort problems.
What to do if your tonnage doesn’t match your home
If the tonnage on the data plate does not align with measured space and climate, consider upgrading the system or adjusting airflow and insulation. A professional can perform a full load calculation and propose options such as equipment replacement, zoning, or duct improvements. In some cases, a pairing of a smaller unit with better ductwork is more efficient than a larger one.
Verdict: Air Conditioner Service’s practical recommendations
Air Conditioner Service's verdict is to start with the data plate and room measurements, then have a professional confirm with a Manual J load calculation if there's any mismatch or planned change. By following these steps, homeowners and renters can ensure reliable comfort and efficient energy use without unnecessary expenditures.
Tools & Materials
- Tape measure(Minimum 25 ft (7.6 m) for larger spaces; metric equivalents acceptable)
- Notebook and pen(For recording measurements, tonnage values, and observations)
- Camera or smartphone(Capture clear photos of data plates and labels)
- Flashlight(Read small print on labels and data plates)
- Step ladder(Access data plates on higher units or attic panels)
- Owner's manual (optional)(Helpful for model numbers and spec sheets)

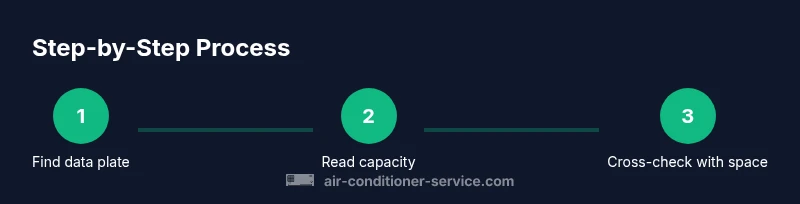

Steps
Estimated time: 60-90 minutes
- 1
Locate the data plate on the outdoor unit
Power off the unit and remove the access panel. Find the data plate listing capacity and model information. Photograph clearly for reference, since labels can fade over time.
Tip: Use a flashlight and take multiple angles to capture the entire plate. - 2
Read the tonnage value from the data plate
Identify the line that shows Ton or Nominal Capacity. If BTU/h is shown, note the value and be prepared to convert to tons (divide by 12,000). Cross-check the model number with the manufacturer sheet.
Tip: If the print is unclear, check the owner’s manual or the manufacturer website. - 3
Measure the main living area
Measure length and width of the primary space served by the unit. If there are multiple areas, add up the totals that share the same system. Record ceiling height and note any large windows or heat sources.
Tip: Create a simple sketch to accompany your measurements for clarity. - 4
Estimate cooling needs for the space
Use the room measurements and climate considerations to estimate the rough cooling need. Adjust for shade, sun exposure, and occupancy. Remember this is a guide; a professional load calculation will be more precise.
Tip: Document assumptions (sun exposure, occupancy) to explain any variances. - 5
Assess insulation and shading
Check attic and wall insulation levels and seal obvious gaps around doors and windows. Record any shading sources like trees or overhangs that reduce heat gain. These factors significantly affect tonnage needs.
Tip: Take photos of insulation and seal gaps for later review. - 6
Cross-check data plate with room measurements
Compare the data plate’s tonnage with your space estimate. If they align, proceed with confidence. If not, flag the discrepancy for a professional review.
Tip: When in doubt, circle the discrepancy and prepare notes for the HVAC technician. - 7
Evaluate ductwork and airflow
Inspect visible ducts for damage and check for signs of restricted airflow, which can mask under- or over-sizing. Poor airflow can mimic the symptoms of incorrect tonnage.
Tip: Listen for whistling or rattling sounds that indicate leaks or blockages. - 8
Consider climate and occupancy
Higher occupancy or extreme climates raise cooling loads. If your space changes seasonally (extra rooms, home office), revisit tonnage needs.
Tip: Keep a log of seasonal changes that affect cooling demand. - 9
Decide whether a professional load calculation is needed
If there’s any doubt about accuracy or if you’re planning a replacement, schedule a Manual J load calculation with a licensed pro.
Tip: A professional can often identify duct or insulation improvements that reduce tonnage needs. - 10
Document results for future reference
Save photos, notes, and the final tonnage recommendation in one folder. This helps during maintenance, replacements, or refits.
Tip: Organize documents by date and by space or zone. - 11
Plan next steps based on findings
If mis-sizing is confirmed, decide whether to upgrade equipment, modify ductwork, or improve insulation. Prioritize energy efficiency and comfort gains.
Tip: Prioritize long-term savings over short-term fixes. - 12
Review safety and regulatory considerations
Ensure any work adheres to local codes and safety guidelines. If accessing electrical panels, confirm power is off and use appropriate PPE.
Tip: When in doubt, defer to a licensed HVAC technician for any electrical work.
Common Questions
What is AC tonnage and why should I check it?
AC tonnage is the unit describing cooling capacity; 1 ton equals 12,000 BTU per hour. Checking tonnage helps ensure your system size matches your space for comfort and efficiency.
AC tonnage is the cooling capacity, with 1 ton equal to 12,000 BTU per hour. Checking it helps ensure proper sizing for comfort and efficiency.
Where do I find the tonnage on my unit?
Look at the data plate on the outdoor unit; it lists the tonnage or nominal capacity. If needed, cross-check the model number with the manufacturer sheet.
Check the outdoor unit’s data plate to find the tonnage.
Can tonnage be changed without replacing the system?
Tonnage is tied to the equipment’s design. Replacing tonnage usually requires a different unit or significant system changes recommended by a pro.
Usually a different unit is needed; consult a pro for options.
How do I calculate tonnage for a space?
Start with the data plate, then use a professional Manual J load calculation to verify. A home-based estimate considers room size, insulation, and climate.
A pro can do a precise load calculation; you can start with the data plate.
What if my AC is not cooling evenly?
Uneven cooling can indicate incorrect tonnage, duct issues, or insulation gaps. A professional can diagnose and verify tonnage and airflow.
It could be the tonnage or airflow issues; get a professional check.
Should I hire a professional for tonnage checks?
Yes. A professional can perform a comprehensive load calculation and verify that your system is correctly sized and configured.
A professional can perform the precise load calculation.
Watch Video
The Essentials
- Know that 1 ton equals 12,000 BTU/h.
- Check the outdoor data plate first for tonnage.
- Room size, insulation, and climate influence tonnage needs.
- When unsure, get a professional Manual J load calculation.
