Air Conditioner BTU: A Practical Sizing Guide for Home Cooling

Understanding BTU and Cooling Load

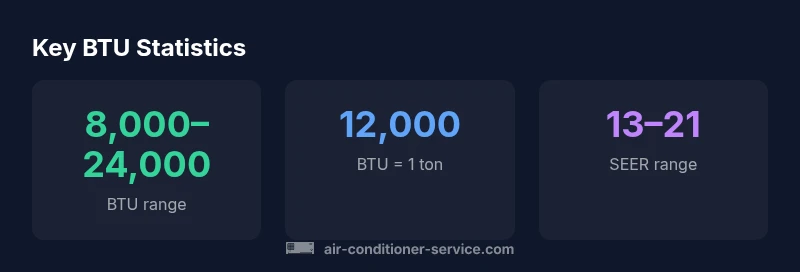

The term BTU, or British Thermal Unit, measures the amount of heat an air conditioner can remove in an hour. When you hear 'air conditioner BTU,' think of it as the capacity to cool a space rather than the unit's energy use. A higher BTU can cool more air, but only if the space can absorb that cooling without rapid cycling. According to Air Conditioner Service, correctly sizing BTU is the foundation of comfortable, efficient cooling, especially in climates with strong sun or poor insulation. For most homes, common BTU ranges span from around 8,000 BTU to 24,000 BTU per hour, with 12,000 BTU (1 ton) covering a typical living area of roughly 400–600 square feet depending on climate and shading. This sizing must balance room dimensions, ceiling height, number of occupants, windows, and heat-generating appliances. In practice, you should start with a rough floor area calculation, then adjust for sun exposure, window orientation, and occupancy to arrive at a sensible BTU target. The goal is to match cooling capacity with heat load so the system runs longer but less efficiently, rather than short cycling and wasting energy.

How to Choose the Right BTU for Your Space

Choosing the right air conditioner BTU starts with the room size and usage. Use the following ballpark guidelines as a starting point, then adjust for climate and insulation:

• Small bedrooms or offices (up to 150 sq ft): about 5,000–6,000 BTU/h
• Living rooms and open spaces (150–350 sq ft): about 6,000–10,000 BTU/h
• Larger living areas (350–550 sq ft): about 12,000 BTU/h
• Very large spaces or sun-drenched layouts (>550 sq ft): about 14,000–24,000 BTU/h

Remember: these ranges are starting points. If your space is unusually sunny, has many occupants, or has poor insulation, you may need more BTU or, conversely, slightly less if you have shading or high efficiency windows. Homeowners should also consider the unit’s efficiency rating, not just BTU, because energy use scales with both capacity and performance under real conditions. For accurate sizing, a Manual J load calculation performed by a licensed HVAC professional is the gold standard; it accounts for walls, windows, attic conditions, and equipment style.

The Pitfalls of Incorrect BTU Sizing

Sizing the cooling capacity too high or too low creates problems. Oversized units often short-cycle, turning on and off frequently, which uses more energy, dries the air too quickly, and neglects humidity control. Undersized units work harder, run longer, and struggle to reach or maintain the target temperature, leaving you with uneven cooling in corners and rooms. In both cases, comfort suffers and energy bills rise. In addition, improper BTU sizing can shorten equipment life, increase the likelihood of refrigerant issues, and reduce dehumidification, which is a common complaint in humid climates. To avoid these issues, it’s essential to balance capacity with heat load and to plan for future use patterns, especially in areas with seasonal occupancy or variable electricity pricing.

Practical Steps to Measure Your Space Before Buying

A careful on-site assessment will save you time and money. Start with these steps:

1. Measure each room’s dimensions (length × width × height) and calculate the gross square footage.
2. Note ceiling height; tall ceilings can increase the cooling load.
3. Assess shading and window orientation; south- or west-facing windows dramatically affect heat gain.
4. List heat sources: electronics, lighting, and appliances add to the load.
5. Consider insulation quality, air leaks, and ductwork (if applicable).
6. Check for existing return air paths and fresh air needs.
7. Use a rough BTU estimator as a guide, but plan for a formal load calculation by a pro for final decision.

Air Conditioner Service emphasizes that an accurate BTU estimate improves comfort, energy efficiency, and long-term reliability. Although these steps don’t replace professional calculations, they give you a solid foundation for your discussions with a contractor.

BTU and Efficiency: How to Interpret SEER, EER, and COP

BTU alone does not reveal a unit’s efficiency. SEER, EER, and COP measure how efficiently the system converts electricity into cooling. A higher SEER rating means better energy efficiency for the same BTU capacity, which can lower operating costs over time. When comparing units, look for a balance of BTU (cooling capacity) and SEER (efficiency). An undersized unit with a high SEER might still be expensive upfront, and a oversized unit with a low SEER may waste energy despite cooling quickly. In practical terms, choose a BTU that matches your heat load and pair it with the highest practical SEER you can justify within your budget. Air Conditioner Service notes that many homes gain more comfort and lower operating costs by prioritizing efficient models with accurate sizing, rather than chasing the largest cooling capacity alone.

Quick Fixes to Improve Cooling Without Replacing Unit

If you’re not ready to upgrade, several improvements can help your current setup perform better. Start by addressing heat gain and air leakage: seal gaps around doors and windows, add or replace weatherstripping, and install blackout curtains or blinds to reduce sun exposure. Improve attic insulation and ensure your ductwork is sealed and properly insulated if you have a central system. Use ceiling fans to enhance air movement, and set the thermostat to a consistent level to minimize cycling. Regular maintenance, including filter changes and coil cleaning, keeps BTU performance closer to rated capacity. Though these fixes don’t alter the BTU rating, they reduce the heat load and make the existing unit more effective.

Whole-House Sizing: Ducted vs Ductless, Zoning, and Heat Load

For homes with multiple rooms or uneven heat distribution, consider zoning or selecting a system that allows room-by-room control. Ducted central systems require careful duct design to avoid stale air pockets and ensure even cooling; ductless mini-splits can tailor BTU per room but need careful selection to avoid under- or over-sizing in each zone. Zoning, combined with proper thermostats and controlled dampers, helps balance the total heat load across spaces. In all cases, a professional load calculation remains essential, especially for new installations or major renovations. From a long-term perspective, BTU sizing should align with future changes in occupancy, window renovations, or insulation upgrades.

How to Validate BTU with Real-World Performance

After installation, monitor performance to confirm the BTU rating matches reality. Track how long it takes to reach the set temperature and how humidity feels in the space. If you notice frequent on/off cycling, lingering heat in some rooms, or excessive energy bills, consult your HVAC professional for a recalibration or a new load calculation. A Manual J calculation can be revisited after major changes like insulation improvements or room additions. Regular maintenance and proper airflow management ensure the system hits the expected BTU output over its service life. Air Conditioner Service recommends periodic performance checks to maintain comfort and efficiency.
