What Is the Inside Part of an Air Conditioner Called
Discover the indoor components that make an air conditioner work, from the evaporator coil to the control board, with practical maintenance tips from Air Conditioner Service.
Internal components of an air conditioner are the parts inside the unit that enable cooling, including the evaporator coil, blower, expansion device, filter housing, drain pan, and control board.
What counts as the inside part of an air conditioner
For homeowners and renters, the phrase inside part typically refers to the components housed in the indoor unit of a central or split system. In a window unit, the entire system is contained within a single cabinet, but the principle remains the same: certain components stay inside the living space to handle air movement and heat exchange. The core indoor parts usually include the evaporator coil, blower or fan, filter housing, drain pan, expansion device, thermostat or control board, and the wiring that connects them. These pieces work in tandem with the outdoor condenser to complete the cooling cycle. Understanding these parts helps you recognize when maintenance is needed and what a technician will examine during service. If you notice weak cooling, unusual noises, or a coil that looks frosted or iced, start by checking the indoor elements you can safely access. According to Air Conditioner Service, a basic familiarity with these components empowers you to communicate more clearly with a technician and plan preventive maintenance that reduces surprises.
Core components inside the indoor unit
The indoor portion of a typical split system centers around the evaporator coil and the blower. The evaporator coil is a sealed set of tubes with a dense array of fins where refrigerant absorbs heat from indoor air. As heat is drawn out, moisture in the air condenses on the coil surface and flows into the condensate drainage system. The blower or supply fan pushes air across the cold coil and into living spaces, while the air filter housing at the intake traps dust and allergens before air reaches the coil. A metering device, typically a thermal expansion valve or an orifice, reduces refrigerant pressure before it enters the evaporator. The condensate drain pan and line collect and remove that water, helping prevent mold and water damage. A thermostat or control board regulates temperature, fan speed, and safety features, while wiring ties everything together. Air Conditioner Service emphasizes that keeping these indoor parts clean, accessible, and properly insulated can prevent performance drops and extend equipment life.

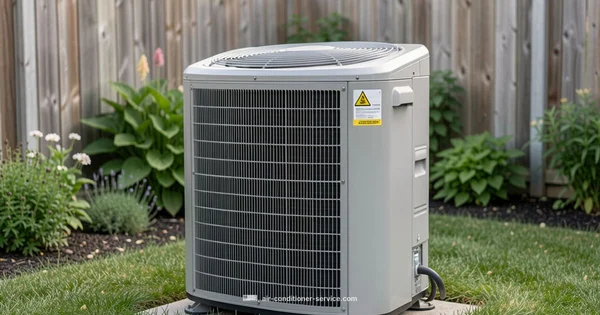

Core components in the outdoor unit
The outdoor unit houses the high pressure side of the system and is essential for heat rejection. The compressor acts as the system’s heart, compressing low pressure refrigerant into a high pressure gas. The condenser coil releases heat to the outdoors as the refrigerant gas condenses into a liquid. An outdoor fan moves air across the condenser coil to improve heat transfer, especially on hot days. A refrigerant metering device ensures the right amount of refrigerant reaches the indoor coil, balancing cooling performance. Many systems also include a contactor and overload protection to safeguard electrical components. While these parts live outside the living space, problems here can negate the cooling work performed by the indoor components. Regular external checks, clearances around the outdoor unit, and professional servicing when needed help keep the full system operating efficiently.
How the main parts work together
The cooling process begins when your thermostat calls for cool air. The outdoor compressor then pressurizes refrigerant, sending it to the condenser where heat is rejected to the outdoors. After condensation, the refrigerant moves back inside to the metering device, where its pressure is reduced. The low pressure refrigerant travels to the evaporator coil in the indoor unit, absorbing heat from indoor air as it evaporates into a gas. The blower then circulates cooled air through your home. Condensation forms on the evaporator coil and drains away via the drain line. This cycle repeats as long as cooling is requested. Efficient systems manage refrigerant flow and air movement to maximize comfort while minimizing energy use. Air Conditioner Service highlights that maintaining clean indoor air paths and secure electrical connections helps sustain efficiency and reduce wear on both indoor and outdoor components.
Maintenance tips for the inside components
Maintenance of the indoor components is key to reliable cooling. Start with the air filter: replace or clean it every 1 to 3 months, depending on usage and indoor conditions. A dirty filter forces the blower to work harder and reduces airflow. Inspect the evaporator coil for dirt buildup and clean it carefully with a soft brush or coil cleaner, taking care not to bend the fins. Check the condensate drain line for clogs and ensure the drain pan is free of standing water. Keep insulation on refrigerant lines intact to prevent condensation and energy loss. Periodically listen for unusual noises from the blower or control board and verify that the thermostat is communicating correctly with the unit. Finally, ensure the indoor unit has adequate clearance from walls and furniture to maintain proper airflow. Routine professional maintenance, as recommended by Air Conditioner Service, can catch developing issues before they cause bigger problems and extend the life of internal parts.
Troubleshooting common symptoms of internal problems
If you notice weak airflow, warm air, or rooms that take longer to cool, start with simple checks of the indoor components: replace the filter, inspect for ice on the evaporator coil, and confirm the blower is running smoothly. Ice on the coil usually means restricted airflow, which could be caused by a dirty filter, a dirty outdoor coil, or a refrigerant issue. A musty or burning odor can indicate a dirty filter or mold growth in the ductwork or drain pan. Water around the indoor unit may point to a clogged drain line or a leaking condensate pan. Listen for rattling, grinding, or squealing noises that could signal a loose panel, worn blower bearing, or motor issue. If these steps don’t restore performance, schedule a professional inspection. Early detection through routine checks helps prevent more extensive and costly repairs later on. Air Conditioner Service notes that most internal problems improve with timely maintenance and proper airflow management.
When to call a professional
Some internal parts are complex and involve electrical safety and refrigerant handling, so professional service is recommended for most repairs. If you notice persistent cooling problems, refrigerant leaks, unusual noises, electrical tripping, or ice that recurs after defrosting attempts, contact a licensed technician. Servicing the indoor unit may involve cleaning coils, checking the blower, testing electrical connections, and inspecting the evaporator’s sealant and insulation. Calling a professional also helps preserve warranty coverage and ensures safe handling of refrigerants. Regular, scheduled maintenance by a qualified technician reduces the risk of sudden breakdowns and keeps both indoor and outdoor components operating at peak efficiency. The Air Conditioner Service approach emphasizes a proactive maintenance plan that aligns with your home’s usage and climate, helping you avoid unexpected heat waves or budget surprises.
Common Questions
What is the inside part of an air conditioner called?
The indoor part is typically called the indoor unit or air handler in a split system. It houses the evaporator coil, blower, and control equipment that interact with the outdoor unit to cool your space.
The inside part is the indoor unit, also called the air handler. It contains the evaporator coil, blower, and controls that work with the outdoor unit to cool your home.
What are the main indoor components and their functions?
Key indoor parts include the evaporator coil for heat absorption, the blower fan for air movement, the air filter housing for filtration, the expansion device for refrigerant flow, and the control board that manages operation.
The main indoor parts are the evaporator coil, the blower, the filter housing, the expansion device, and the control board, which together manage cooling.
Can I repair these parts myself?
Some tasks, like replacing filters, cleaning accessible coils, or clearing minor drain line clogs, can be DIY. More complex issues involving refrigerant, electrical work, or compressor problems require a licensed technician.
Simple tasks like changing filters you can do yourself. For refrigerant or electrical issues, call a licensed professional.
How often should I clean the inside parts?
Clean the inside components regularly: replace or clean filters every 1 to 3 months, inspect coils annually, and have a professional check the system at least once a year.
Clean or change filters every one to three months, inspect coils annually, and schedule a yearly professional check.
Is it safe to touch the inside parts if the unit is not cooling?
Do not attempt to service electrical components. If the system is not cooling, turn off power at the breaker, and contact a qualified technician to diagnose internal issues safely.
No. Turn off power and contact a technician to diagnose inside parts safely.
How often should the indoor parts be inspected by a pro?
A yearly professional inspection is a common recommendation, especially in homes with moderate to heavy use or older equipment.
Have the indoor parts checked by a professional annually to catch wear and ensure efficiency.
The Essentials
- Schedule regular filter changes to maintain airflow
- Keep the evaporator coil clean to prevent icing
- Do not ignore strange noises or odors from the indoor unit
- Regularly clear the condensate drain and check for leaks
- Consult a professional for refrigerant or electrical issues
