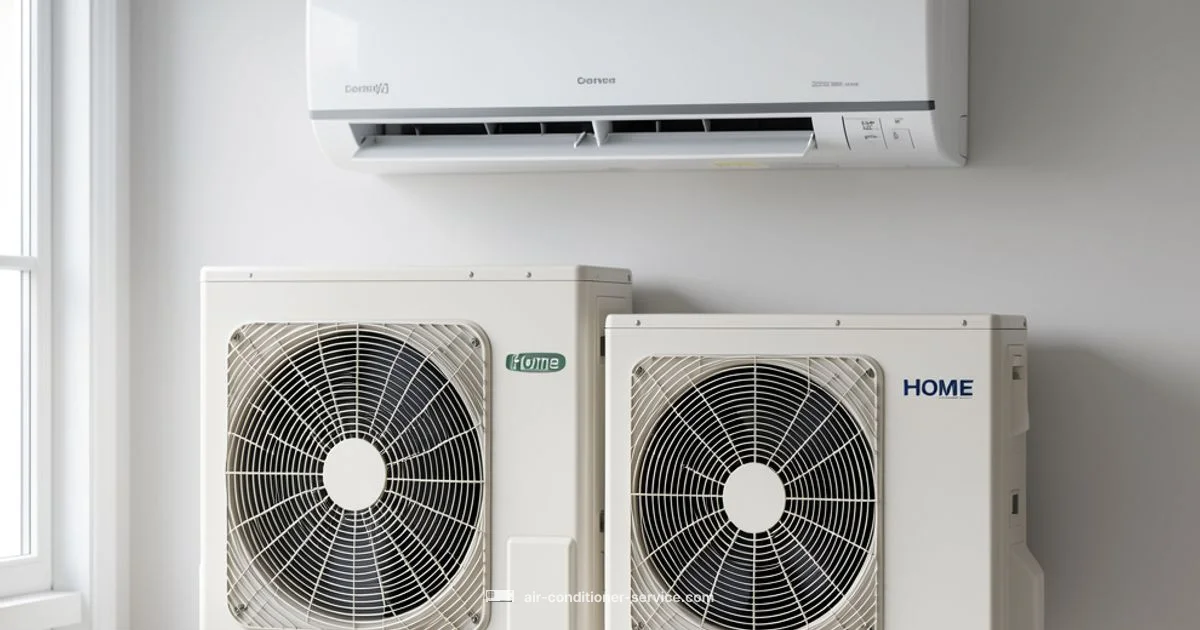

What are the parts of a home air conditioner
Discover the core parts of a home air conditioner, how they work together, and practical maintenance tips to keep your cooling system efficient and reliable.
Parts of a home air conditioner are the components that work together to cool indoor air; a typical system includes an outdoor condenser, indoor evaporator (air handler), refrigerant lines, and control components.
What are the parts of a home air conditioner
What are the parts of a home air conditioner? At its core, a cooling system relies on a few essential subsystems that work in concert to remove heat from indoors. In a typical central system, electricity powers a compressor inside an outdoor unit, which compresses refrigerant into a high pressure gas. The gas then travels through a copper line to the outdoor condenser coil where it releases heat and condenses into a liquid. From there, the refrigerant moves through a metering device and heads to the indoor evaporator coil in the air handler. As the refrigerant absorbs heat from indoor air and returns to a low pressure gas, a blower pushes cooled air through ductwork to rooms. A condensate drain removes the moisture collected during cooling. Each part has a specific role, and together they form a balanced cooling cycle. According to Air Conditioner Service, understanding these parts helps homeowners identify issues early and plan maintenance.

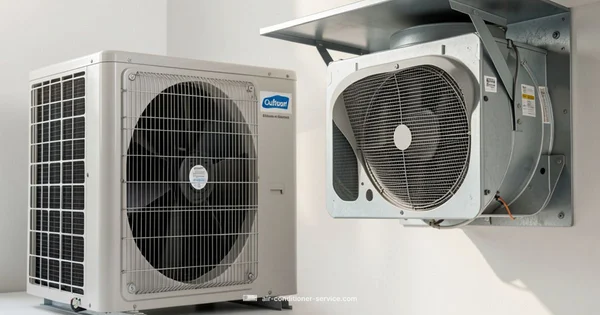

Outdoor condenser unit
The outdoor condenser unit is visible on a pad outside the home and holds several key components that reject heat. Inside you’ll typically find a compressor, a condenser coil, and a condenser fan or fan motor. As the refrigerant gas releases heat, the fan helps shed that heat to the outside air, allowing the refrigerant to condense back into a liquid. Proper airflow is essential; leaves, dirt, or mulch near the unit can obstruct the condenser fins and raise energy use. Keeping the area clear and clean improves efficiency and prolongs component life. The outdoor unit connects to the indoor air handler via insulated refrigerant lines. When kept in good condition, this unit does the heavy lifting of heat rejection, supporting steady comfort inside the home. Air Conditioner Service analysis shows that debris around the condenser is a common cause of reduced efficiency.
Indoor evaporator coil and air handler
Inside the home, the evaporator coil sits in the air handler and cools the air as warm indoor air passes over it. The air handler contains a blower (or fan) that pushes the cooled air into the duct system and out through vents. A filter sits upstream to capture dust and allergens, helping maintain indoor air quality and system efficiency. The evaporator coil and drain pan work with a condensate drain line to carry away moisture collected during cooling. The air handler is typically located in a closet or utility space and is connected to the outdoor unit by refrigerant lines and wiring. The performance of the indoor side relies on clean filters, properly sized ducts, and a steady airflow path. Air Conditioner Service emphasizes routine checks to keep air movement smooth and energy use low.
The refrigerant cycle explained in plain terms
The refrigerant cycle is the backbone of any air conditioner. Compressor work raises the refrigerant’s pressure, turning it into a hot, high-pressure gas in the outdoor unit. As this gas passes through the condenser coil, it releases heat to the outside air and becomes a liquid. The liquid refrigerant then moves through an expansion device, where its pressure drops and it enters the evaporator coil as a cool, low-pressure liquid. In the evaporator, it absorbs heat from indoor air and reverts to a gas, ready to travel back to the compressor. This continuous loop removes heat from your home and releases it outdoors. Understanding this cycle helps homeowners grasp how failures in any component—compressor, condenser, expansion device, or evaporator—affect cooling.
Controls, wiring, and safety features
Modern home air conditioners rely on a network of controls and electrical safety devices. The thermostat signals the system when cooling is needed, and the control board or relay logic coordinates the sequence of operations. Electrical components include capacitors, contactors, fuses, and circuit breakers that protect the compressor and blower from electrical faults. The safety disconnect near the outdoor unit provides a ready way to shut down power for service. Proper wiring and secure connections reduce the risk of shorts and improve reliability. A well-maintained control system ensures efficient start and stop cycles, which helps preserve refrigerant and reduce energy use. Regular professional checks can verify that safety devices operate correctly and that wiring insulation remains intact.
System variations: central, heat pump, and ductless
Not all homes use the same setup. Central air conditioners with a split system typically have an outdoor condenser and an indoor air handler connected with refrigerant lines and ductwork. Heat pumps combine heating and cooling in one system and use a reversing valve to switch modes. Ductless mini splits provide cooling without ductwork by placing indoor air handlers in individual rooms and connecting them to a compact outdoor unit. Each configuration has its own parts and maintenance needs, but the core principles—refrigerant flow, heat transfer, airflow, and controls—remain the same. When choosing a system, homeowners should consider climate, insulation, and how often cooling is used, as these factors influence maintenance schedules and efficiency.
Maintenance essentials for every part
Regular maintenance helps every part of the air conditioner perform at its best. Change or clean filters as recommended by the manufacturer to preserve airflow and indoor air quality. Clean the outdoor condenser fins gently to prevent airflow restriction, and keep the surrounding area clear of debris. Inspect the refrigerant lines for insulation wear and signs of leaks, and ensure the condensate drain is clear to prevent water damage. Listen for unusual noises, check for vibrations, and watch for ice forming on the evaporator coils, which can signal airflow or refrigerant issues. Scheduling professional inspections at least once a year can catch problems early and extend the life of the system. Air Conditioner Service notes that timely maintenance can improve efficiency and comfort, especially during peak cooling months.
DIY inspection checklist: safe and simple steps
Before any inspection, switch off power to the unit at the breaker and outdoor disconnect. Visually inspect the outdoor unit for debris, manage nearby vegetation, and ensure the grille is free for airflow. Check the air filter inside the home and replace if dirty. Look at the thermostat settings and verify they reflect comfortable temperatures without cycling excessively. If you notice ice on the evaporator coil, unusual sounds, or a noticeable drop in cooling performance, it’s time to call a professional. Avoid opening electrical panels or attempting refrigerant work yourself; refrigerant handling requires trained technicians and specific certification.
Symptoms and what they may indicate
If cooling is weak or uneven, the issue could involve the outdoor condenser, the indoor evaporator, or the air handler. Frequent cycling might point to thermostat problems or over/under sizing. Water leaks near the air handler could indicate a clogged drain or pan. A noisy or warm-running outdoor unit could signal a failing fan motor or compressor issue. Persistent frost on refrigerant lines or low refrigerant charge requires professional service. In all cases, documenting symptoms and dates helps technicians diagnose more accurately and ensures faster resolution. The goal is to maintain balanced temperatures, efficient energy use, and comfortable living spaces.
Putting it all together: practical verdict
The Air Conditioner Service team recommends treating your air conditioner as a system with interdependent parts. Regular maintenance on filters, coils, and condensate drainage supports efficient cooling and can prevent many common problems. When you notice reduced comfort or unusual noises, take a moment to review the key components and their basic operation. A quick assessment helps you communicate symptoms clearly to a technician and may prevent unnecessary repairs. By staying proactive, homeowners can extend the life of their equipment, protect their investment, and maintain reliable cooling for years to come. Air Conditioner Service’s approach is to empower homeowners with practical, actionable guidance that keeps systems running smoothly.
Common Questions
What are the main parts of a home air conditioner?
The main parts include the outdoor condenser, indoor evaporator coil with an air handler, refrigerant lines, a thermostat, and electrical controls. These pieces work together to move heat from indoors to outdoors and to circulate cooled air back into the home.
The main parts are the outdoor condenser, indoor evaporator, refrigerant lines, a thermostat, and the controls. They work together to move heat outside and cool the indoor air.
How do the parts work together to cool a room?
The compressor pressurizes refrigerant in the outdoor unit, which releases heat through the condenser. The refrigerant then expands and cools in the evaporator inside, absorbing heat from indoor air. A blower pushes this cooled air through the ducts to cool rooms.
The compressor pressurizes refrigerant outside, heat is released, then the refrigerant cools in the evaporator and absorbs indoor heat. A blower sends cooled air through the ducts.
How often should I replace or clean filters?
Check filters monthly and replace or clean as recommended by the manufacturer. Regular filter care maintains air quality and improves system efficiency.
Check filters monthly and replace or clean as the manufacturer suggests to keep air clean and the system efficient.
Can I service refrigerant leaks myself?
Handling refrigerant requires certified training and proper equipment. Do not attempt to repair leaks yourself; contact a licensed HVAC professional for safe diagnosis and repair.
Refrigerant work requires certification. Don’t try to fix leaks yourself—call a licensed technician.
What is the difference between central AC and a ductless system?
Central AC uses a connected duct system to distribute cooled air, typically with an outdoor condenser and indoor air handler. Ductless systems use individual indoor units without ducts, offering targeted cooling for specific zones.
Central AC uses ducts and one outdoor unit, while ductless systems have individual indoor units without ducts.
What are common signs that parts need maintenance?
Look for weak cooling, unusual noises, ice on coils, water leaks, or rising energy bills. These signs often point to filters, coils, drainage, or airflow issues that benefit from servicing.
If cooling gets weaker, you hear strange noises, or you see ice or leaks, schedule a check. These often involve filters, coils, or drainage.
The Essentials
- Know the core components and how they fit together
- Prioritize regular maintenance for efficiency
- Replace filters regularly to protect airflow and air quality
- Watch for signs of refrigerant or airflow problems
- Consult a professional for refrigerant or electrical work
