How to Install Air Conditioner Filter: A Practical Guide
Learn how to install an air conditioner filter correctly with our practical, homeowner-friendly guide. We cover sizing, orientation, maintenance, and safety to keep your AC efficient and your indoor air clean.
According to Air Conditioner Service, installing a fresh air conditioner filter is quick, protective, and budget-friendly. First locate the return air grille, remove the old filter, and insert a correctly sized replacement with the arrows pointing toward the blower. Use the right MERV rating for your system, and note the replacement schedule. The Air Conditioner Service team found that regular changes improve airflow, reduce strain, and boost indoor air quality.
Why replacing the filter matters
Filters trap dust, pollen, hair, and other particles before air travels through your home's ducts. A dirty or poorly seated filter can restrict airflow, making the blower work harder and potentially lowering cooling efficiency. Replacing the filter on a regular schedule helps maintain steady airflow, improves indoor air quality, and reduces energy use. The Air Conditioner Service team stresses that this single, simple task sets the stage for healthier air and a happier, more efficient cooling system. By keeping filters clean, you also protect coils from buildup that can lead to frost and higher maintenance costs over time. In this guide we will walk through how to choose the right filter and install it correctly, so you can perform this task confidently at home.
Filters, sizes, and compatibility you should know
Filters come in different sizes and thicknesses. The most common residential filters are 1 inch thick, but thicker options exist for higher efficiency or tighter homes. Always verify the exact size by checking the old filter frame or the unit label. Pay attention to the orientation marks on the filter frame; the arrows show the direction of airflow toward the blower. MERV ratings range from about 6 to 13 in most homes. Lower MERV values are faster to breathe through but catch fewer particles, while higher MERV filters trap more but can reduce airflow if your system isn’t sized for them. For typical families, a MERV 8–11 filter provides a good balance between filtration and airflow. If you or family members have allergies or asthma, consider a higher rating, but ensure your system can handle it.
Safety and preparation before you begin
Before you touch anything, turn off the thermostat and, if possible, power at the service panel to ensure the fan won t start unexpectedly. Wear gloves to avoid contact with dust and use a flashlight to inspect the grille and filter housing. If your system uses a removable access panel, you may need a screwdriver to lift it. Keep the area around the unit clear so you can work safely and avoid dropping debris into the ductwork. Finally, have the new filter ready in the correct size and orientation before you start the removal.
How to locate and verify the correct filter size
Start by locating the return air grille or filter housing. The size is usually printed on the side of the filter or stamped on the grille frame itself. If you can t locate the size, measure the filter area: length, width, and thickness. Use the same measurements for your replacement to avoid fitting issues. Always ensure you are using a filter that matches the specific model of your unit, as mismatched sizes can cause bypass leaks and reduced filtration. If in doubt, refer to your unit manual or contact the manufacturer for guidance.

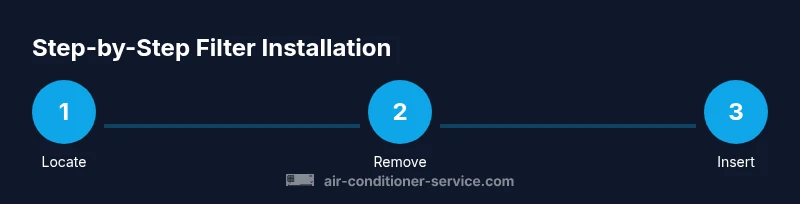

Step-by-step installation overview (high-level)
Once you have the right filter, remove the old one, inspect the housing for debris, and gently clean the area with a dry cloth or vacuum. Slide the new filter in with the airflow arrows pointing toward the blower. Make sure the filter sits evenly and there are no gaps around the edges. Reinstall the grille or access panel and restore power. Finally, run the fan for a few minutes to verify airflow feels strong and consistent across vents.
After you install: testing, sealing, and monitoring
Turn the unit back on and run the fan at a low setting for several minutes to verify proper airflow. Check for unusual noises or reduced airflow that might indicate a poorly seated filter. If you have a sealed filter frame, confirm there are no gaps at the edges. It s a good habit to note the date of replacement on the filter housing or a maintenance log so you can track when to replace next. Regular checks help sustain efficiency and air quality.
Troubleshooting common issues and quick fixes
If the filter won t fit, double-check the size and orientation. If you notice reduced airflow after installation, remove and reseat the filter, and inspect the grille for any obstruction. If the filter is overly dirty but the required size doesn t fit, consider a higher grade filter only if your system supports it. Debris around the housing or a clogged return vent may also affect performance; clean these areas before reinstalling.
Maintenance schedule and long-term care
A good rule of thumb is to check the filter every month during peak dust seasons and replace it every 1–3 months, depending on usage and the filter type. Homes with pets or smokers may require more frequent changes. Record the replacement date to maintain a consistent schedule and prevent backlog. Pair filter changes with other HVAC maintenance tasks to maximize efficiency and comfort.
Tools & Materials
- New air filter (correct size and MERV rating)(Check exact frame size on the old filter or inside the grille; arrows must point toward the blower)
- Gloves(Keep hands clean and reduce dust exposure)
- Flashlight(Inspect the housing and orientation marks clearly)
- Screwdriver (if needed for access panel)(Phillips or flathead depending on fasteners)
- Vacuum with brush attachment(Clean the grille opening and surrounding area before inserting the new filter)
Steps
Estimated time: 5-10 minutes
- 1
Power off and prepare the area
Turn off the AC at the thermostat and, if possible, at the service panel. Clear the area around the unit to give you safe access to the filter housing.
Tip: Double-check that the fan won t start unexpectedly when you open the grille. - 2
Open the filter housing
Remove the grille or access panel to expose the filter frame. Use a flashlight to clearly see the filter and its orientation marks.
Tip: If there are screws, keep them in a small container to avoid losing them. - 3
Remove the old filter
Carefully slide the old filter out without shaking dust back into the housing. Note the orientation of the arrows for the new filter.
Tip: If the filter is stuck, don t force it; gently pry with the edge of a screwdriver or a putty knife. - 4
Inspect and clean the housing
Check for debris or mold around the filter frame and wipe or vacuum it clean. A clean housing helps the new filter seal properly.
Tip: A clean start prevents bypass leaks and improves filtration efficiency. - 5
Insert the new filter
Slide the new filter into the housing with the arrows facing toward the blower. Ensure it sits evenly and there are no gaps around the edges.
Tip: Gently wiggle the filter to confirm it is seated flat. - 6
Reassemble and test
Replace the grille or panel, restore power, and run the fan for several minutes to confirm strong airflow at all registers.
Tip: Listen for unusual sounds; if airflow is weak, re-check seating.
Common Questions
Do I need to power off the AC before changing the filter?
Yes. Turn off the thermostat and, if possible, switch off power at the service panel to prevent the blower from starting unexpectedly while you work.
Yes, turn off the thermostat and the power at the service panel to stay safe while you change the filter.
What size filter do I need?
Check the size printed on the old filter or inside the grille. If you can t find it, measure the housing opening and match the dimensions precisely.
Look for the size on the old filter or measure the opening to match the exact dimensions.
Can I reuse a filter?
Reusing a dirty filter is not recommended. Replace with a new filter of the same size and appropriate MERV rating for better filtration and airflow.
It s not advisable to reuse a dirty filter; replace it with a new one that matches your unit.
Is a higher MERV rating always better?
Higher MERV filters capture more particles but can restrict airflow if your system isn t designed for them. Choose a balance that suits your unit and home needs.
Higher MERV filters aren t always better; pick a rating that balances filtration with your system airflow.
How often should I change the filter?
Most homes replace filters every 1–3 months, but environments with pets, smoke, or high dust may require more frequent changes.
Most people change every 1 to 3 months, more often if your environment is dusty or has pets.
What if the filter doesn t fit or seal well?
Double-check the exact size and orientation. A filter that doesn t seal can bypass filtration and reduce efficiency; if needed, re-check the housing or consult the unit manual.
If it doesn t seal, re-check the size and install orientation; a poor seal reduces filtration.
Watch Video
The Essentials
- Know your filter size and orientation before purchasing.
- Use the appropriate MERV rating for your system.
- Seat the new filter firmly to avoid air leaks.
- Record replacement dates to maintain a consistent schedule.
- Regular replacements keep your system efficient and your air clean.
