Split unit hvac is a two‑part air conditioning system that uses an outdoor condenser paired with an indoor air handler connected by refrigerant lines, enabling cooling without traditional ductwork.
What is a split unit hvac?
Split unit hvac refers to a two‑part air conditioning system that separates the outdoor condenser from the indoor air handler, connected by refrigerant lines. This arrangement allows cooling without traditional ductwork and can be scaled from a single room to multiple zones with additional indoor units. According to Air Conditioner Service, split unit hvac configurations often reduce ducting needs and offer flexible placement. Air Conditioner Service Analysis, 2026, also notes that when properly sized and maintained, these systems can be energy efficient and easy to retrofit in homes without major remodels. The core idea is to deliver conditioned air where it is needed without forcing air through a network of ducts that may be leaky or inefficient in older houses.
How a split unit hvac works

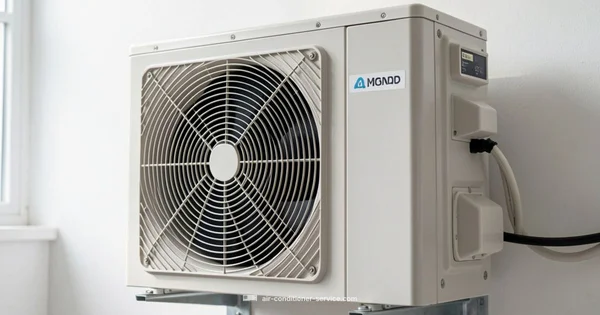

At the heart of a split unit hvac is the refrigeration cycle. The outdoor condenser rejects heat to the outside air while the indoor air handler circulates conditioned air through the space. A sealed refrigerant loop transfers heat between units, controlled by a thermostat or smart controller. The system relies on two main components: an outdoor compressor/condenser and one or more indoor air handlers. In a single room setup, one indoor unit works with one outdoor unit; in multi‑split configurations, multiple indoor units can be served by a single outdoor condenser. Proper insulation, line-set routing, and a correctly sized unit are essential for efficient operation and comfort across the home.
Types of split unit hvac systems
Split unit hvac systems come in several flavors. The most common are the traditional split system with a single outdoor unit and one indoor air handler, and the mini‑split or ductless configuration that uses one outdoor unit connected to multiple independent indoor units. Multi‑split setups allow zoning without ducts, letting different rooms or zones operate on their own schedules. Some systems use ducts in a compact form factor, while others are entirely ductless, relying on individual wall‑mounted or ceiling cassette indoor units. When choosing between these options, consider how many zones you need, the available exterior space for the condenser, and whether you want centralized or room‑by‑room control.
Pros and cons of split unit hvac
Pros include flexible zoning, minimal or no ductwork, easier retrofit in existing homes, and often quicker installation compared with full ducted systems. They also enable targeted cooling for rooms or zones and can be quieter for specific spaces. Cons can include higher upfront costs per BTU of cooling, outdoor unit placement limitations, and potential refrigerant handling requirements. In some setups, the interior units may rely on wall space or ceiling height, which can affect aesthetics and room design. Overall, the best choice depends on whether you prioritize zoning flexibility, retrofit feasibility, and energy efficiency in the right climate.
Installation considerations
Professional installation is essential for split unit hvac. An installer will evaluate site accessibility for the outdoor condenser, ensure proper clearance around the unit, and plan refrigerant line routing through a wall or crawl space with minimal pressures on the system. Electrical requirements, weatherproofing, and proper drainage must be addressed. Permits may be needed in some jurisdictions. A well‑installed split unit hvac system should be sized for the space, correctly charged with refrigerant, and balanced for efficient operation. Regular checks during initial operation help verify that airflow, temperature, and humidity targets are achievable without undue noise or vibration. Air Conditioner Service emphasizes the importance of professional installation to ensure long‑term reliability and comfort.
Maintenance and troubleshooting
Maintenance for split unit hvac is generally simpler than for large centralized systems. Regular tasks include cleaning or replacing filters, inspecting indoor air handlers, and cleaning outdoor condensers to prevent debris buildup. Periodic coil and fin cleaning helps maintain heat exchange efficiency. Check for unusual noises, ice formation on the coils, or refrigerant leaks, which require a licensed technician. Drainage should be clear, and the thermostat or control system should be calibrated for consistent operation. When issues arise, address them promptly to avoid energy waste and reduced cooling comfort. A proactive maintenance routine can extend the life of the system and prevent costly repairs.
Sizing and efficiency considerations
Sizing is critical for split unit hvac performance. An undersized system will struggle to meet cooling demands, while an oversized unit can short cycle, wasting energy and reducing humidity control. Efficiency is typically discussed in terms of SEER and other rating metrics, though the exact figures vary by system and climate. In general, higher efficiency units offer lower operating costs over time but may have higher upfront costs. When selecting a unit, work with an HVAC professional to perform a load calculation and consider future changes in occupancy or space use. Regular maintenance also helps maintain efficiency, ensuring the system delivers the intended comfort with sensible energy use.
Choosing the right split unit hvac for your home
Choosing the right split unit hvac depends on room layout, climate, and budget. If you want true room‑by‑room control, a mini‑split or multi‑split setup may be ideal, especially where ductwork is impractical. For whole‑home cooling with limited duct space, a single large outdoor unit with multiple indoor units can provide flexible zoning. Consider noise tolerance, outdoor space for the condenser, and compatibility with smart thermostats. Budget for initial installation and ongoing maintenance, and prioritize a system with solid compressor quality and reputable support. Air Conditioner Service recommends evaluating your home’s specific cooling needs, climate patterns, and future plans before committing to a split unit hvac configuration.
Common Questions
What is the difference between a split system and a ductless mini split?
A split system typically refers to a central air configuration with ducts connecting an indoor air handler to the outdoors. A ductless mini split uses one outdoor unit and individual indoor units without ductwork, enabling room‑by‑room cooling.
A split system uses ducts with one indoor unit, while a ductless mini split has no ducts and can cool multiple rooms with separate indoor units.
Can I install a split unit hvac myself?
Installation involves refrigerant handling and electrical work, which require a licensed HVAC technician. Improper installation can cause safety risks and poor performance.
No, professional installation is recommended due to refrigerant and electrical considerations.
Is a split unit hvac suitable for new homes?
Yes, split unit hvac can be a good fit for new homes, particularly when zoning or ductwork constraints exist. A professional assessment determines the best layout and system size.
Yes, it's often a good option if zoning or duct space is a concern.
How does maintenance differ from central AC maintenance?
Maintenance steps are similar in principle—filters, coils, and airflow checks—but split units place emphasis on indoor and outdoor unit upkeep and refrigerant integrity. Regular service keeps efficiency high.
Maintenance is similar, but you focus more on both indoor and outdoor units and refrigerant health.
What are common signs of a failing split unit hvac?
Common signs include poor cooling, unusual noises, inconsistent temperatures, ice on coils, and higher energy bills. If you notice these, contact a technician for a diagnostic.
Look for poor cooling, strange noises, or ice on coils, and contact a pro if you see these signs.
The Essentials
- Know that split unit hvac separates outdoor and indoor components for flexible, ductless cooling
- Choose between mini-split, multi-split, or ducted variants based on zoning needs
- Proper sizing and professional installation are critical for efficiency and comfort
- Maintenance is straightforward but requires regular filter and coil care
- Consider noise, outdoor space, and thermostat control when planning installation
