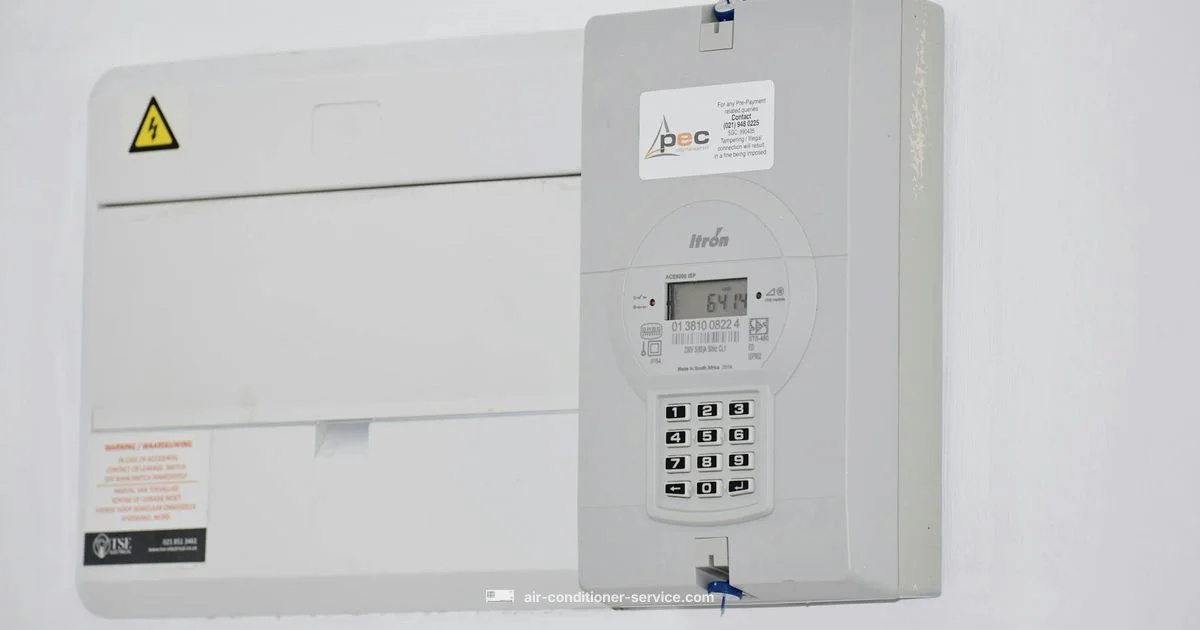

Fuse box for air conditioner is the electrical panel that houses fuses or circuit breakers protecting the circuit powering the air conditioning unit.
What a fuse box does for your AC
The fuse box, also called the electrical panel, protects the circuit that powers your air conditioner by interrupting power when faults occur. It acts as the central safety gate, preventing overheating, arcing, and fires by tripping a breaker or blowing a fuse when current exceeds the circuit’s rating. Understanding this helps homeowners diagnose why an AC won’t start or why it cycles off unexpectedly. According to Air Conditioner Service, the fuse box for air conditioner is not just about power; it’s about safety, reliability, and proper sizing of circuits to support cooling loads. If your AC is not turning on, the issue could be a tripped breaker, a blown fuse, a loose connection, or even an aging panel that cannot safely handle modern loads. In all cases, never bypass safety devices. Diagnosing panel problems requires a careful inspection of the panel, related wiring, and the outdoor disconnect, if present, by someone trained in electrical safety.
Common fuse box configurations for AC circuits
Air conditioning circuits are typically wired as dedicated branches from the main panel. A dedicated circuit means one specific circuit is reserved for the AC unit, reducing the risk of nuisance trips from other appliances. The breaker or fuse protecting that circuit should be sized to the unit’s electrical requirements, which historically means a 15- or 20-amp branch in many older homes and a higher-amp circuit for larger equipment in newer installations. Some homes still rely on a fuse box rather than a modern circuit breaker panel, in which case a single blown fuse will cut power to the entire AC. In addition to the indoor and outdoor units, a disconnect switch near the outdoor condenser provides a manual means to cut power for service. Understanding these configurations helps you identify whether the issue is inside the panel or elsewhere in the system.
How to spot problems at the fuse box
Problems at the fuse box often manifest as power loss to the AC without obvious external failure. Look for signs such as frequent breaker trips or blown fuses, a warm or discolored panel, buzzing sounds, or a burning smell near the box. Loose or corroded connections can also cause intermittent outages and arcing, which is a fire risk. If you notice any of these indicators, power down the affected circuit and call a licensed electrician. Do not attempt to tighten large conductors or replace components beyond your experience level. A professional can test with appropriate equipment, verify proper grounding, and ensure all connections meet current electrical codes. Early detection saves both equipment and safety risks in the long run.
Safe troubleshooting steps you can perform
First, unplug or turn off the thermostat-controlled AC unit and switch off the corresponding breaker in the main panel if you are comfortable. Then check the outside disconnect near the condenser to confirm it is in the ON position. If the breaker has tripped, reset it by fully switching it OFF, waiting a moment, and flipping it back ON. If the circuit remains off or trips again, there may be a fault in the outdoor unit, wiring, or a failing capacitor, and you should stop and contact a professional. If your system uses fuses rather than breakers, replace the blown fuse with a fuse of the same rating and never use a higher-rated fuse. After any reset, allow the system a few minutes to restart and monitor for repeated trips. Remember, never touch live terminals.
When not to DIY: safety and code concerns
Working on a fuse box involves high voltage and risk of severe shock or arc flash. Electrical panels must meet local codes and be labeled correctly. If you see scorch marks, a persistent burning smell, or signs of moisture, call a licensed electrician immediately. In most jurisdictions, any panel work or service upgrade requires a licensed professional, proper permits, and a safety inspection. For many homeowners, the safest path is to schedule an inspection if the AC issues continue after basic checks. A pro can determine whether the panel, wiring, or the main service panel requires upgrades to support ongoing cooling needs.
Maintenance to prevent fuse box problems
Regular maintenance reduces the odds of panel-related outages. Schedule an annual electrical inspection that includes the AC circuit and outdoor disconnect. Keep the panel area dry and free of dust, moisture, and flammable materials. Ensure all panel covers are secure and that there is no moisture ingress around the cooling equipment. Label circuits clearly to speed up future diagnoses. If you replace the air conditioner or update the unit’s load, have the panel re-evaluated by a qualified electrician. Properly sized breakers and clean connections promote reliable operation and can extend the life of both your panel and your AC.
How to upgrade or replace a fuse box or panel for air conditioning
Upgrading the service to support modern air conditioning equipment is not a task for DIY. If your home’s electrical service is older or frequently overloaded, you may need to upgrade the main panel or service capacity. A licensed electrician can determine whether a panel upgrade, adding a subpanel, or routing a dedicated AC circuit is appropriate. They will ensure correct conductor sizing, grounding, and protection devices, and will handle any necessary permits. A panel upgrade improves safety, reduces nuisance trips, and provides headroom for future cooling needs. After the upgrade, have the AC unit and all related wiring inspected to ensure code compliance and optimal performance. Air Conditioner Service recommends scheduling professional service for any panel work.
Common Questions
Is it safe to reset a tripped breaker to fix an air conditioner outage?
Yes, if you are confident the overload was temporary and there is no burning smell or heat. Turn the breaker fully off, then back on and monitor. If it trips again, stop and call a professional.
If the breaker trips again after resetting, stop and contact a licensed electrician.
What does a burning smell from the fuse box mean?
A burning smell indicates overheating or arcing. Turn off power at the main disconnect and call an electrician immediately.
A burning smell means there may be a serious electrical fault; shut off power and call a pro.
Can a fuse box issue cause an air conditioner not to cool?
Yes. A tripped breaker, blown fuse, or loose connections can cut power to the unit, causing not cooling.
Yes, electrical faults in the box can stop the AC from cooling.
Do I need a licensed electrician for fuse box problems?
In most cases yes. Panels involve high voltage and must meet code; a licensed electrician can inspect, upgrade, and ensure safe operation.
Generally yes; seek a licensed electrician for panel work.
What maintenance helps prevent fuse box problems?
Regular inspections, keeping the panel dry, and labeling circuits reduces risk and speeds future service.
Keep the panel dry and labeled; schedule periodic inspections.
What is the difference between a fuse box and a circuit breaker panel?
A fuse box uses replaceable fuses; a breaker panel uses resettable breakers. Modern homes typically use breaker panels for safety and convenience.
Fuses are replaced; breakers reset. Modern panels use breakers.
The Essentials
- Ensure AC has a dedicated circuit and correctly sized breaker.
- Never bypass safety devices in the fuse box or panel.
- Resetting a tripped breaker may fix simple overloads, but persistent trips require a pro.
- Call a licensed electrician for panel damage, overheating, or signs of arcing.
- Regular electrical inspections help prevent future fuse box problems.
